Adaptall 5204S-06 5204S-06

Adaptall 5204S-06

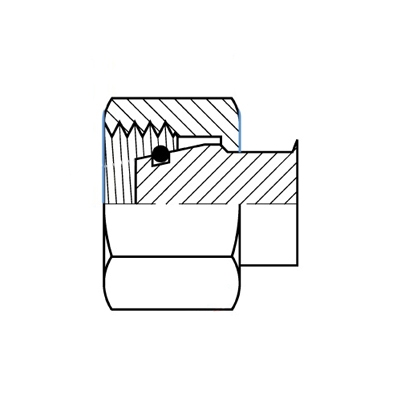

Adaptall 5204S Series 5204S-06 Heavy-Duty Soft Seal Cap, 6 mm Female DIN 24 deg Tube, Steel

pin-int

Adaptall Heavy-Duty Soft Seal Cap, 5204S Series, Cap Fitting, 6 mm Connection, Female DIN 24 deg Tube Connection, Steel, Material Construction: Carbon Steel, Dimensions: 16.5 mm L x 14 mm W, 630 bar Maximum Operating, Additional Information: M14x1.5 Thread Size

Additional Information      :      M14x1.5 Thread Size
Connection Size      :      6 mm
Connection Size 1      :      6 mm
Connection Type      :      Female DIN 24 deg Tube
Connection Type 1      :      DIN 24 deg Tube
Dimension Standards      :      DIN 2353, ISO 8434-1
Dimensions      :      16.5 mm L x 14 mm W
Fitting Type      :      Cap
Gender 1      :      Female
Hex Size      :      14 mm
Length      :      16.5 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Maximum Operating Pressure      :      630 bar
Pressure Rating      :      630 bar
Series      :      5204S Series
Shape      :      Cap
Thread Size 1      :      M14 x 1.5
  • Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5203L-28_CAT.pdf
  • Catalog https://assets.unilogcorp.com/492/ITEM/DOC/Adaptall_5204S-06_Catalog.pdf
