Adaptall Metric Banjo Bolt, Series: 3608, Connection Type 1: Threaded, Connection Size 1: 22 mm, Thread Size 1: M22 x 1.5, Hex Size: 27 mm, Dimension Standards: DIN 7631, ISO 6149, ISO 9974, Material Construction: Carbon Steel, 46 mm Length
Connection Size 1 |
: |
22 mm |
Connection Type |
: |
Other |
Connection Type 1 |
: |
Threaded |
Dimension Standards |
: |
DIN 7631, ISO 6149, ISO 9974 |
Fitting Type |
: |
Banjo Bolt |
Hex Size |
: |
27 mm |
Length |
: |
46 mm |
Material |
: |
Steel |
Material Construction |
: |
Carbon Steel |
Series |
: |
3608 |
Shape |
: |
Banjo Bolt |
Thread Size 1 |
: |
M22 x 1.5 |
DIN 7631|ISO 6149/9974 Specified
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_9606S-06-S08-16_CAT.pdf
-

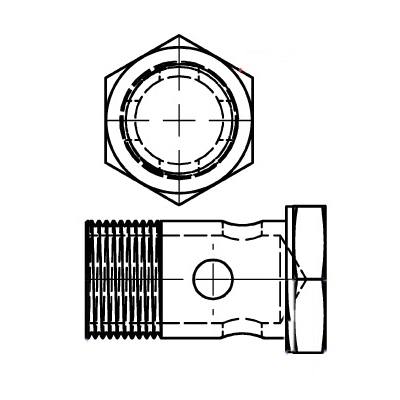

Technical Drawing/Parts Diagram
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_3068-08-1_TD.pdf
