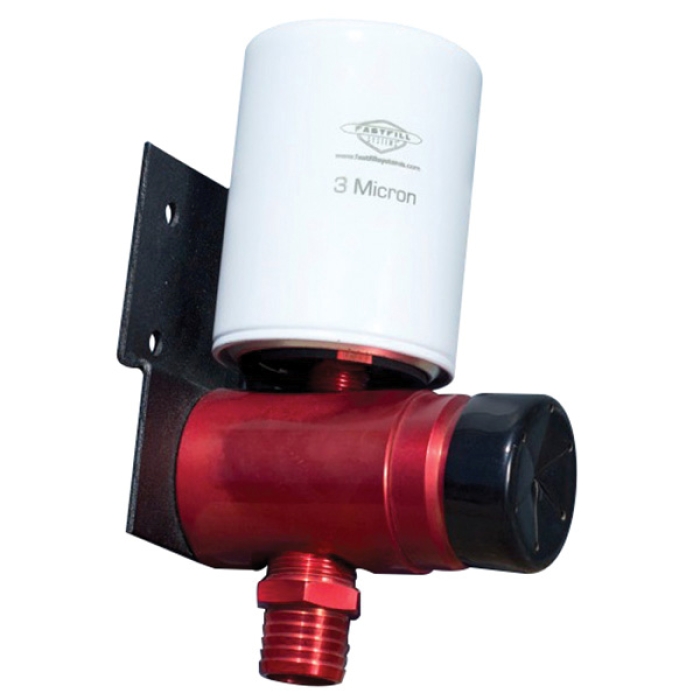

Nozzle Tech™ FFV150-LP Low Profile Dual Check Valve Filter Vent, 1 in NPT

Nozzle Tech™ FFV150-LP

  • Manufacturers: Fast Fill Systems
  • Brand Name: Nozzle Tech™
  • ARGPN: FFV150-LP
  • MPN: FFV150-LP
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Nozzle Tech™ Low Profile Dual Check Valve Filter Vent, Nominal Size: 1 in, Connection Type: NPT

Connection Type      :      NPT
Nominal Size      :      1 in
Product Type      :      Filter Vent

Standard vents allow dirt and debris to enter the fuel tank. A one-way check valve allows the discharge of air over 300 gpm, but prevents dirt and debris from entering back into the tank through the valve. An integrated 3 um filter with a check valve increases fuel injector performance and pump life by filtering incoming air. The Pressureless filter vent is designed in three different configurations: the FFV 150 for remote mounting connecting the level control with a 1-1/4 in Dia hose, the FFV 150-PL for direct mounting with a 1 in NPT thread and the FFV 150-M LP which can be mounted remotely or directly and comes in a low-profile horizontal design to save space.

  • High profile for variable placement
  • Universal-mounting bracket for easy installation
  • Low profile horizontal configuration

Applications: For pressure less system, low head room locations

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nozzle Tech_FFV150-LP_CAT.pdf
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Nozzle Tech_FFV150-LP_SS.pdf
