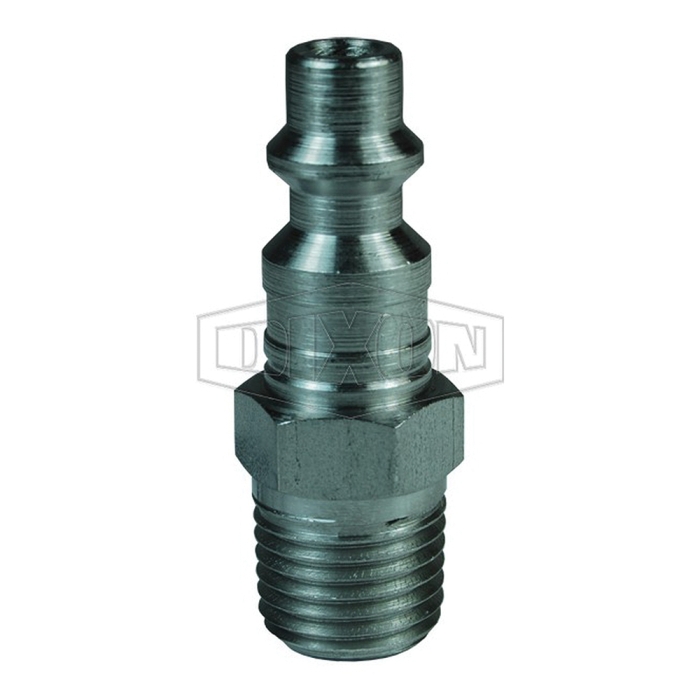

Dixon® Pneumatic Industrial Interchange Plug, Series: DF, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, 500 psi, Material Construction: 303 Stainless Steel, Dimensions: 1.69 in L, -40 to 250 deg F
| Connection Size 1 |
: |
1/4 in |
| Connection Size 2 |
: |
1/4 in |
| Connection Type 1 |
: |
Quick Disconnect |
| Connection Type 2 |
: |
NPTF |
| Dimensions |
: |
1.69 in L |
| Gender 2 |
: |
Male |
| Material |
: |
Stainless Steel |
| Material Construction |
: |
303 Stainless Steel |
| Pressure Rating |
: |
500 psi |
| Series |
: |
DF |
| Shape |
: |
Plug |
| Temperature Rating |
: |
-40 to 250 deg F |
| Thread Size 2 |
: |
1/4-18 |
- Machined components are manufactured using solid bar stock
- Foster 3, 4, 5 and 6 Series
- Parker 30 Series automatic interchange and Parker 20 Series manual interchange
- Hansen 3000, 4000, 5000 and 6000 and Hansen 1000, 400 and 500
Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.
Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
