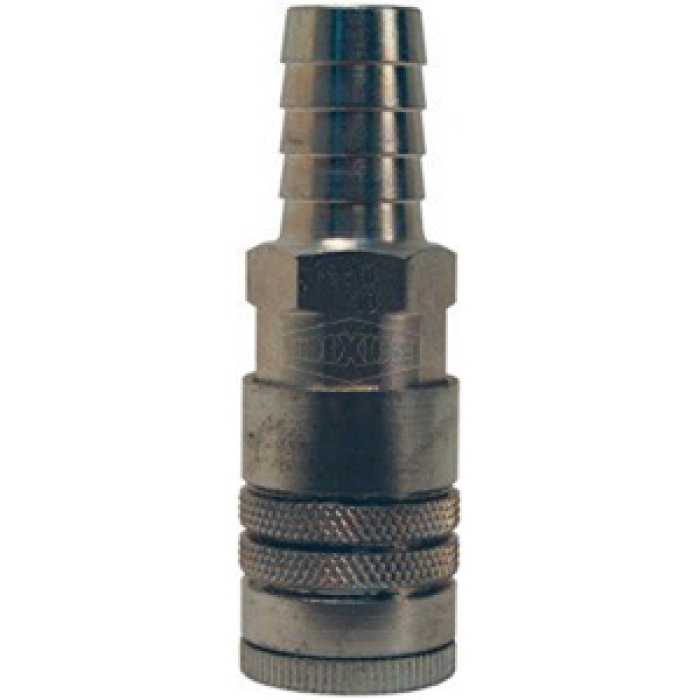

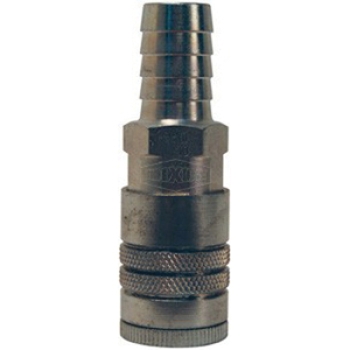

Dixon® DC1046 Steel Air Chief Semi-Automatic Industrial Interchange Coupler, 1/2 in Quick Disconnect x 3/4 in Hose Barb

Dixon® DC1046

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: DC1046
  • MPN: DC1046
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Air Chief Semi-Automatic Industrial Interchange Coupler, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 3/4 in, 300 psi, Material Construction: Steel, -40 to 250 deg F

Connection Size 1      :      1/2 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      Hose Barb
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      300 psi
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
  • Semi-automatic, pull sleeve to connect
  • Couplers shut-off when disconnected
  • Air chief industrial couplers are the popular industrial design and will interchange with many other makes

Applications: For air service only

Safety Notes:

  • For air service only.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and personal injury including death.

Prop Warning Mil-A-A-59439/C-4109F Specified|Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2AM2-B_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DC1044_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_DC1046_TD.pdf
