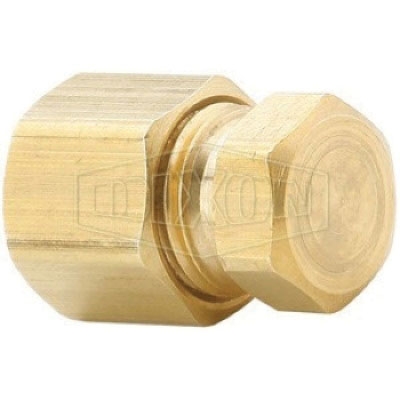

Dixon® Seal Plug, Connection Type 1: Compression, Connection Size 1: 1/4 in, Thread Size 1: 7/16-24, Hex Size: 7/16 in, Material Construction: Brass, Dimensions: 0.74 in L, -65 to 250 deg F
| Connection Size 1 |
: |
1/4 in |
| Connection Type 1 |
: |
Compression |
| Dimensions |
: |
0.74 in L |
| Hex Size |
: |
7/16 in |
| Material |
: |
Brass |
| Material Construction |
: |
Brass |
| Shape |
: |
Plug |
| Temperature Rating |
: |
-65 to 250 deg F |
| Thread Size 1 |
: |
7/16-24 |
- Underwriter's Laboratories listed for flammable liquid, SAE J-512, ASA
Instructions: No flaring, soldering or other preparation of tubing necessary to assemble.
Slide nut, then sleeve onto tubing.The thread end of the nut must face out.Insert tube into the fitting.Be sure the tube is bottomed on the fitting shoulder.Assemble nut to body, and tighten hand tight.Then follow the number of appropriate wrench turns for the given size.Safety Notes: Not recommended for steel tubing.
Not recommended for applications using gaseous media.Applications: Use with copper, aluminum and thermoplastic tubing
Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
