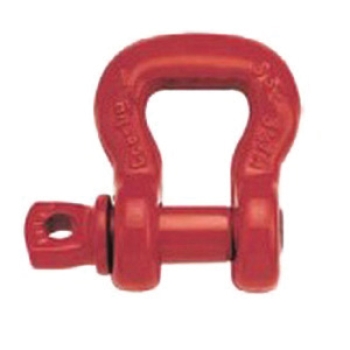

Crosby® Sling Saver® Screw Pin Web Sling Shackle, Series: S-253, Load Capacity: 12.5 ton, Size: 3 in, 31.8 mm Pin Diameter, Screw Pin, Inside Length: 77.5 mm, Inside Width: 82.5 mm, 41.1 mm Opening, Eye Outer Size: 66.5 mm, Material Construction: Alloy Steel, Finish: Self-Colored, Red, 161 mm Length, 142 mm Width
| Color |
: |
Red |
| Eye Outer Size |
: |
66.5 mm |
| Finish |
: |
Self-Colored |
| Inside Length |
: |
77.5 mm |
| Inside Width |
: |
82.5 mm |
| Length |
: |
161 mm |
| Load Capacity |
: |
12.5 ton |
| Material |
: |
Steel |
| Material Construction |
: |
Alloy Steel |
| Opening Size |
: |
41.1 mm |
| Pin Diameter |
: |
31.8 mm |
| Pin Type |
: |
Screw |
| Product Type |
: |
Web Sling Shackle |
| Series |
: |
S-253 |
| Size |
: |
3 in |
| Sub Brand |
: |
Sling Saver® |
| Width |
: |
142 mm |
- 5:1 design factor
- Each shackle has a product identification code (PIC) for material traceability along with a working load limit and the name Crosby® forged into it
- Increased radius of bow gives wider sling bearing surface resulting in an increased area for load distribution
- Increasing synthetic sling efficiency as compared to standard anchor and chain shackle bows and conventional hooks, this allows 100% of the slings-rated working load limit to be achieved
- Allows better load distribution on internal fibers
- Bolt (pin) has a larger diameter that provides better load distribution
- Look for the Red Pin® the mark of genuine Crosby® quality
- Fatigue-rated
- Load-rated
- Quenched and tempered
ASME B30.26|CE Marked
-
