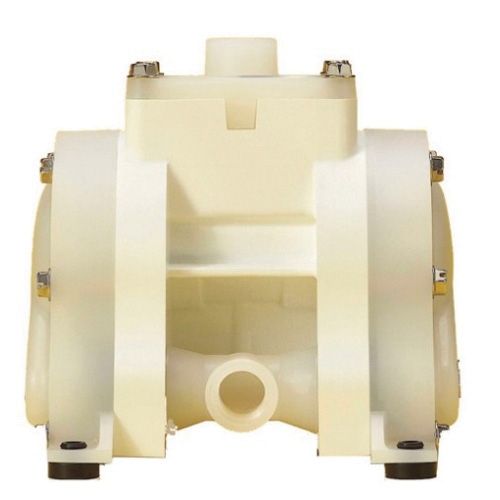

ZeeLine 1025 Santoprene Double Diaphragm Pump, 6.5 cfm, 1/4 in NPT Inlet x 3/8 in NPT Discharge, 6 gpm

ZeeLine 1025

  • Manufacturers: National-Spencer
  • Brand Name: ZeeLine
  • ARGPN: ZEE 1025
  • MPN: 1025
  • UPC: 015954410256
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

ZeeLine Double Diaphragm Pump, Intake Pipe Connections: 1/4 in NPT, Discharge Pipe Connections: 3/8 in NPT, 6 gpm, Air Consumption: 6.5 cfm, Santoprene Diaphragm, Material Construction: Polypropylene

Air┬áConsumption      :      6.5 cfm
Diaphragm Material      :      Santoprene
Discharge Pipe Connections      :      3/8 in NPT
Flow Rate      :      6 gpm
Intake Pipe Connections      :      1/4 in NPT
Material      :      Polypropylene
Material Construction      :      Polypropylene
Product Type      :      Diaphragm Pump
  • Pump is small enough to fit in your hand and intended for light-duty use only
  • Light-duty double diaphragm, air ratio 1:1
  • For transferring fluids at low pressure
  • Polypropylene construction with santoprene seats and diaphragms, kynar check valves and hastelloy springs
  • Non-stalling, lube-free

Warranty: 5 Years Limited
