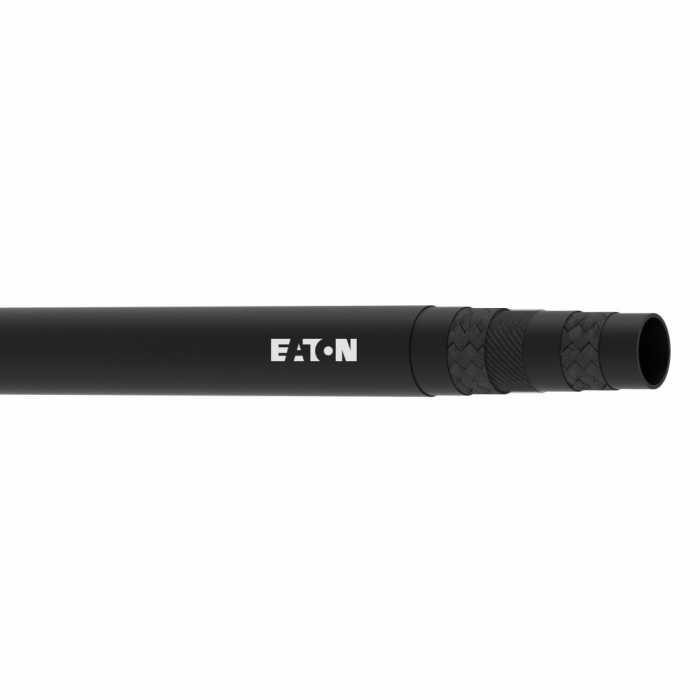

Weatherhead® H03912-100 Black Nitrile Hydraulic Suction Hose, 3/4 in, 1 ft L, 305 psi

Weatherhead® H03912-100

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Weatherhead®
  • ARGPN: H03912-100
  • MPN: H03912-100
  • UPC: 757522207850
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Weatherhead® Hydraulic Suction Hose, Nominal Size: 3/4 in, Dash Size: 12, 1.28 in OD, 3/4 in ID, 0.26 in Thick Wall, 1 ft Length, 305 psi, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: Fabric and Wire, Black, 2-1/2 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 275 deg F High

Bend Radius      :      2-1/2 in
Color      :      Black
Construction      :      Fabric and Wire
Cover Material      :      Synthetic Rubber
Dash Size      :      12
Inside Diameter      :      3/4 in
Length      :      100 ft
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      3/4 in
Outside Diameter      :      1.28 in
Pressure Rating      :      305 psi
Product Type      :      Hydraulic Suction Hose
Resistance Properties      :      Abrasion
Temperature High      :      275 deg F
Temperature Low      :      -40 deg F
Wall Thickness      :      0.26 in

Applications: For hydraulics, crude fuel and lubricating oils, gasoline, air, water and chemical transfer

Prop Warning MSHA Specified|SAE 100R4/J1942/1 Certified

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_H03912-100_CAT.pdf
