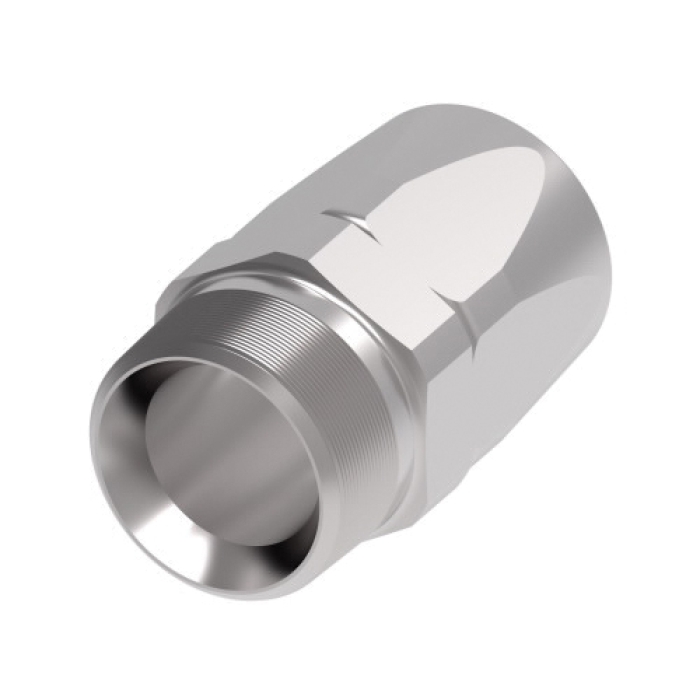

Weatherhead® Field Attachable Reusable Hose End, Series: 069 D, Connection Type 1: Hose, Connection Size 1: 1-3/8 in, Hose Dash Size: 24, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, Hex Size: 1-15/16 x 2 in, 2000 psi, Cut-Off Factor: 2.03 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H069, H166, H169, H229, and H366 Hoses, Dimensions: 3.5 in L x 1.94 in W x 1.94 in H, Dimension Standards: SAE 100R5
| Connection Size 1 |
: |
1-3/8 in |
| Connection Size 2 |
: |
1-1/2 in |
| Connection Type |
: |
Hose~NPT Male |
| Connection Type 1 |
: |
Hose |
| Connection Type 2 |
: |
NPT |
| Cut-Off Factor |
: |
2.03 in |
| Dimension Standards |
: |
SAE 100R5 |
| Dimensions |
: |
3.48 in L |
| Finish |
: |
Zinc-Plated |
| Fitting Type |
: |
Hose End |
| For Use With |
: |
H069, H166, H169, H229, and H366 Hoses |
| Gender 2 |
: |
Male |
| Hex Size |
: |
1-15/16 x 2 in |
| Material |
: |
Steel |
| Material Construction |
: |
Carbon Steel |
| Nominal Size |
: |
1-1/2 in |
| Series |
: |
069 D |
| Shape |
: |
Straight |
| Thread Size 2 |
: |
1-1/2-11-1/2 |
- Very popular in heavy-duty truck markets
- Can be used with a variety of hoses allowing for a diverse number of applications
Applications: Medium pressure and high-temperature hose lines a variety of applications including truck, industrial and small engine where temperature may be a problem
AISI Specified|SAE 12L14/100R5 Certified
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_06904D-604_CAT.pdf
