Synflex® 90312-125000-0
  1. pin-int

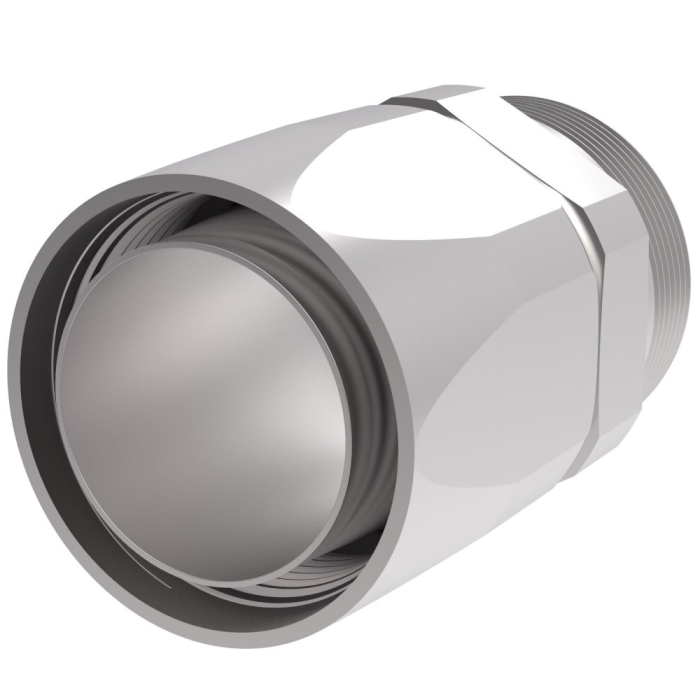

Synflex® 903 Zinc-Plated Steel Male SAE 37 deg JIC Permanent Swage Straight Hose Fitting, 3/4 in

Synflex® 90312-125000-0

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Synflex®
  • ARGPN: 90312-125000-0
  • MPN: 90312-125000-0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Synflex® Permanent Swage Straight Hose Fitting, Series: 903, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: SAE 37 deg JIC, Gender 2: Male, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1-1/8 in, Cut-Off Factor: 1.63 in, Material Construction: Steel, Finish: Zinc-Plated, For Use With: 3R30, 3130, 3740, 37AL, 3580, 25CT, 30CT, and 3800 Hoses, Dimensions: 3.33 in L

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type      :      Hose~JIC Male
Connection Type 1      :      Hose
Connection Type 2      :      SAE 37 deg JIC
Cut-Off Factor      :      1.63 in
Dimensions      :      3.33 in L
Finish      :      Zinc-Plated
Fitting Type      :      Straight Hose Fitting
For Use With      :      3R30, 3130, 3740, 37AL, 3580, 25CT, 30CT, and 3800 Hoses
Gender 2      :      Male
Hex Size      :      1-1/8 in
Hose Dash Size      :      12
Material      :      Steel
Material Construction      :      Steel
Nominal Size      :      3/4 in
Series      :      903
Shape      :      Straight
Thread Size 2      :      1-1/16-12
  • Permanently attached, plated steel, medium pressure hose end type

Applications: Hydraulic circuits in mining, metals and minerals, mobile machinery and equipment
