Stucchi 808104014

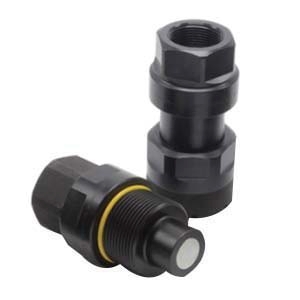

Stucchi VEPHD Carbon Steel Flat Face Interchange Coupling, 1-1/4 in Quick Connect x 1-1/4 in Female SAE Threaded

  • Manufacturer: Stucchi USA
  • Brand: Stucchi
  • ARGPN: 808104014
  • MPN: 808104014
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Stucchi Flat Face Interchange Coupling, Series: VEPHD, Connection Type 1: Quick Connect, Connection Size 1: 1-1/4 in, Connection Type 2: SAE Threaded, Gender 2: Female, Connection Size 2: 1-1/4 in, Thread Size 2: M58 x 3, Hex Size: 2.17 x 2.56 in, 11600 psi Burst, Material Construction: Carbon Steel, Dimensions: 4.2 in L x 2.75 in W, Dimension Standards: ISO 16028, -20 to 100 deg C

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type 1      :      Quick Connect
Connection Type 2      :      SAE Threaded
Dimension Standards      :      ISO 16028
Dimensions      :      4.2 in L x 2.75 in W
Gender 2      :      Female
Hex Size      :      2.17 x 2.56 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      11600 psi Burst
Series      :      VEPHD
Shape      :      Coupling
Temperature Rating      :      -20 to 100 deg C
Thread Size 2      :      M58 x 3

The VEPHD (Heavy-Duty) Series offers the same features of the VEP Series, with upgraded material, a yellow O-ring visual ID and larger mating areas. Like the VEP, the VEPHD is a popular solution for hydraulic circuit applications subject to high-pressure impulses and circuits which experience high residual or trapped pressure in a line, offered in a more durable, higher grade of steel and all QPQ plating for increased longevity.

  • Interchanges with VEP, VEPHDL Series
  • Higher grade of steel for longer life
  • Eliminates brinelling, reduces leakage
  • Entire body in QPQ
  • NBR seal
  • Connection under residual pressure is allowed in both sides, the internal valve system allows an easy connection and the disconnection is included
  • Flat face is easy to clean, reducing the inclusion of contamination to the hydraulic circuit
  • Minimal fluid loss during disconnection, reducing fluid loss to the environment
  • Minimal air inclusion during connection/disconnection
  • Patented internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system
  • Internal pressure release valve system allows an easy connection with high internal residual pressure
  • The modular design allows flexibility with a wide range of configurations
  • High resistance at impulse pressures
  • Safe and simple to use

Applications: For high impulse mobile circuits, all construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure, excavators with auxiliary line for attachments: thumbs, grapples, hammers, hydraulic compactors, hydraulic tampers, demolition
