OPW® 1711ESL-AL20

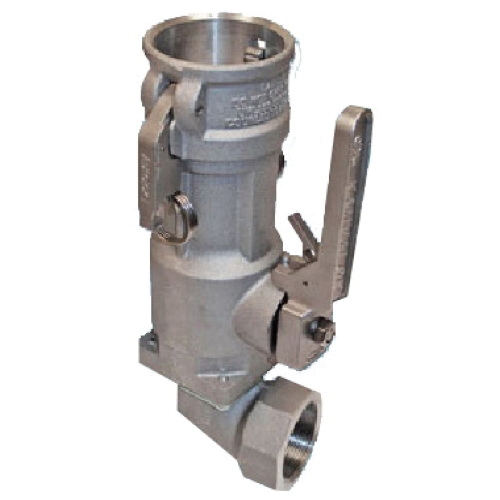

OPW® Midland Kamvalok® 1700ESL Aluminum Dry Disconnect Coupler/Elbow Swivel with Locking Arms, 2 in Coupler x 2 in FNPT

  • Manufacturer: Dover Corporation
  • Brand: OPW®
  • ARGPN: 1711ESL-AL20
  • MPN: 1711ESL-AL20
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

OPW® Midland Kamvalok® Dry Disconnect Coupler/Elbow Swivel with Locking Arms, Series: 1700ESL, Connection Type 1: Coupler, Connection Size 1: 2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 2 in, Thread Size 2: 2-11-1/2, 150 psi, Material Construction: Aluminum, Dimensions: 12.73 in L x 9.4 in W, -20 to 200 deg F

Connection Size 1      :      2 in
Connection Size 2      :      2 in
Connection Type 1      :      Coupler
Connection Type 2      :      NPT
Dimensions      :      12.73 in L x 9.4 in W
Gender 2      :      Female
Material      :      Aluminum
Material Construction      :      Aluminum
Pressure Rating      :      150 psi
Series      :      1700ESL
Shape      :      Coupler
Sub Brand      :      Midland Kamvalok®
Temperature Rating      :      -20 to 200 deg F
Thread Size 2      :      2-11-1/2

OPW Transport Series dry disconnect couplings are considered the standard of the industry for use on multi-compartment petroleum, solvent and chemical product delivery trucks with an on-board pumping unit.

  • Offered with or without AutolokTM locking arms
  • Features poppeted seal cylinder with snap-on nose seal
  • Simple cam and groove design with lever actuation
  • 360 deg orientation, coupler can be connected in any orientation onto the adaptor
  • Manufactured in compliance with the highest quality standards of design, materials and construction
  • Spill protection - helps to reduce the hazards involved in the connection/disconnection process of transferring hazardous materials
  • Autolok™ locking arms provide added protection with an automatic locking mechanism signaled by a positive click, uncoupling requires only an easy tug on the lock release
  • Provides for total closed-loop loading capabilities - when used with the OPW 2173N vapor recovery dry disconnect coupling protects people and property from dangerous and potentially costly exposure by keeping hazardous liquids and vapors in-line and out of the environment
  • Dual protection - OPW Kamvaloks® provide automatic closure from both directions - the coupler and the adaptor
  • Ease of use - the simple connection and disconnection design and lever actuated internal poppet configuration makes this the first choice for liquid transfer operations
  • Buna-N o-ring seal
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/OPW_1711ESLAL20_CAT.pdf
