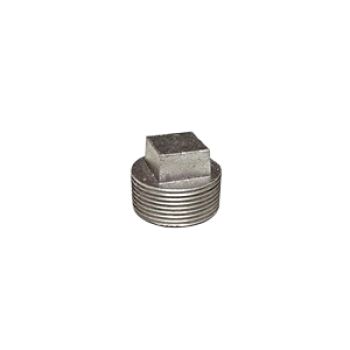

Latrobe Foundry ALPL125 356-F Aluminum Square Head Plug, 1-1/4 in MNPT

Latrobe Foundry ALPL125

  • Manufacturers: Latrobe Foundry Machine & Supply
  • Brand Name: Latrobe Foundry
  • ARGPN: ALPL125
  • MPN: ALPL125
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Latrobe Foundry Square Head Plug, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1-1/4 in, Thread Size 1: 1-1/4-11-1/2, 150 lb, Material Construction: 356-F Aluminum, Dimension Standards: ASME B1.20.1, MIL-DTL-52618-E

Connection Size 1      :      1-1/4 in
Connection Type 1      :      NPT
Dimension Standards      :      ASME B1.20.1, MIL-DTL-52618-E
Gender 1      :      Male
Material      :      Aluminum
Material Construction      :      356-F Aluminum
Pressure Rating      :      150 lb
Shape      :      Plug
Thread Size 1      :      1-1/4-11-1/2
  • Fittings are right hand threaded
  • The fittings have a general conformance with dimensional standard MIL-DTL-52618-E
  • Fittings are random tested at 120 lb of air pressure under water, for a normal surface condition rating of 150 lb of pressure
  • Individual fittings are not marked with alloy or pressure data
  • Fittings are not anodized

Prop Warning ANSI Specified|ASME B1.20.1
