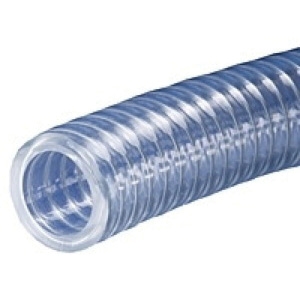

Kuriyama Kuri Tec® Heavy Wall Food and Beverage Vacuum/Transfer Hose, Series: POLYWIRE® K7130, Nominal Size: 2 in, Dash Size: 32, 2-1/2 in OD, 2 in ID, 1 ft Length, 100 psi, Material Construction: PVC, Construction: Helically-Wound Spring Steel Wire, Crystal Clear, 8 in Bend Radius, Resistance Properties: Chemical, 25 deg F Low, 150 deg F High
| Bend Radius |
: |
8 in |
| Color |
: |
Crystal Clear |
| Construction |
: |
Helically-Wound Spring Steel Wire |
| Dash Size |
: |
32 |
| Inside Diameter |
: |
2 in |
| Length |
: |
50 ft |
| Material |
: |
PVC |
| Material Construction |
: |
PVC |
| Nominal Size |
: |
2 in |
| Outside Diameter |
: |
2-1/2 in |
| Pressure Rating |
: |
100 psi |
| Product Type |
: |
Vacuum/Transfer Hose |
| Resistance Properties |
: |
Chemical |
| Series |
: |
POLYWIRE® K7130 |
| Sub Brand |
: |
Kuri Tec® |
| Temperature High |
: |
150 deg F |
| Temperature Low |
: |
25 deg F |
- Spiral wire reinforcement prevents kinking or collapsing, hose diameter will not expand under normal-rated working pressures
- Crystal clear allows visual confirmation of product flow
- Glass smooth interior reduces material build-up
- Electro galvanized helical steel wire can be used for static dissipation
- Self-extinguishing
- Non-marking
- Silicone-free
- One-piece lengths
- Phthalate-free
Applications: For air and water supply lines, car wash applications, food and beverage dispensing, full vacuum lines and industrial vacuum pumps
3A Approved|FDA Approved|NSF Certified|RoHS Compliant|UL Listed|USDA Compliant|USP Certified
-
