Kuriyama TR5-24

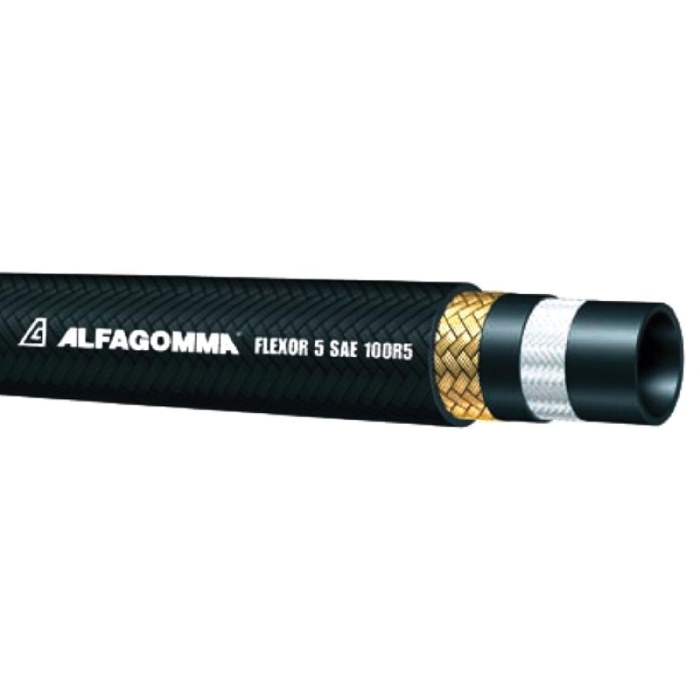

Kuriyama Alfagomma® Flexor 5 Synthetic Rubber Hydraulic Braided Hose, 1-3/8 in, 500 psi

  1. pin-int

Kuriyama Alfagomma® Hydraulic Braided Hose, Series: Flexor 5, Nominal Size: 1-3/8 in, Dash Size: 24, 1-3/4 in OD, 1-3/8 in ID, 500 psi, SAE Rating: SAE 100R5, Material Construction: Synthetic Rubber, Polyester Cover, Construction: 1-High-Tensile Steel Wire Braid, 10-1/2 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      10-1/2 in
Construction      :      1-High-Tensile Steel Wire Braid
Cover Material      :      Polyester
Dash Size      :      24
Inside Diameter      :      1-3/8 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1-3/8 in
Outside Diameter      :      1-3/4 in
Pressure Rating      :      500 psi
Product Type      :      Braided Hose
Resistance Properties      :      Oil
SAE Rating      :      SAE 100R5
Series      :      Flexor 5
Sub Brand      :      Alfagomma®
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
  • Oil-resistant synthetic rubber tube
  • Polyester textile braid cover
  • Hydraulic hose can be combined with other KOA products for qualifying prepaid freight orders

Applications: Medium pressure service hydraulic petroleum-based oil line in impulse applications, lube oil, diesel fuel lines and oil for bio-diesel applications such as air brakes, power steering, turbocharger oil supplies, tilt cab cylinders, transmission coolant, engine coolant and filtration lines

  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_TR524_SS.pdf
