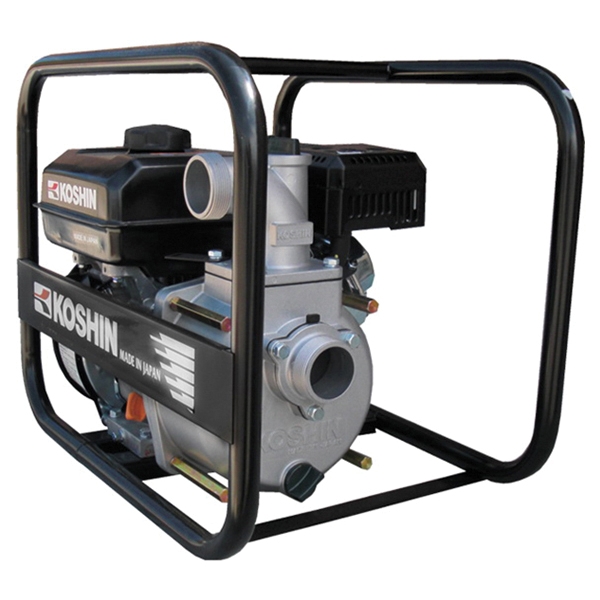

Koshin® STV Aluminum Semi-Trash Pump, 2 in Inlet x 2 in Outlet, 4.7 hp, 39 psi, 163 gpm

Koshin® STV-50X

  • Manufacturers: Koshin
  • Brand Name: Koshin®
  • ARGPN: STV-50X
  • MPN: STV-50X
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Koshin® Semi-Trash Pump, Series: STV, 163 gpm, Inlet Size: 2 in, Outlet Size: 2 in, Maximum Head: 90 ft, Horsepower: 4.7 hp, Impeller Material: Graphite Ductile Cast Iron, Aluminum, Engine Specifications: Model Koshin K180, 179 cc, Fuel Tank Capacity: 0.95 gal, Fuel Type: Unleaded Automotive Gasoline, 39 psi, Suction Lift: 26 ft

Engine Specifications      :      Model Koshin K180, 179 cc
Flow Rate      :      163 gpm
Fuel Tank Capacity      :      0.95 gal
Fuel Type      :      Unleaded Automotive Gasoline
Horsepower      :      4.7 hp
Impeller Material      :      Graphite Ductile Cast Iron
Inlet Size      :      2 in
Material      :      Aluminum
Maximum Head      :      90 ft
Outlet Size      :      2 in
Pressure Rating      :      39 psi
Product Type      :      Semi-Trash Pump
Series      :      STV
Suction Lift      :      26 ft
  • Silicon carbide mechanical seals for increased abrasive-resistant, longer life and less maintenance
  • Impellers and volutes are constructed of spheroidal graphite ductile cast Iron for durability and Long Life
  • Pump housings are made of die-cast aluminum for strength, weight reduction and portability
  • Rugged powder coated roll cages
  • Reliable koshin engines with low oil shut-off
  • Perfect for site with muddy, sandy, pebbles and debris in the water stream

Applications: For irrigation, construction, industrial and general water transfer
