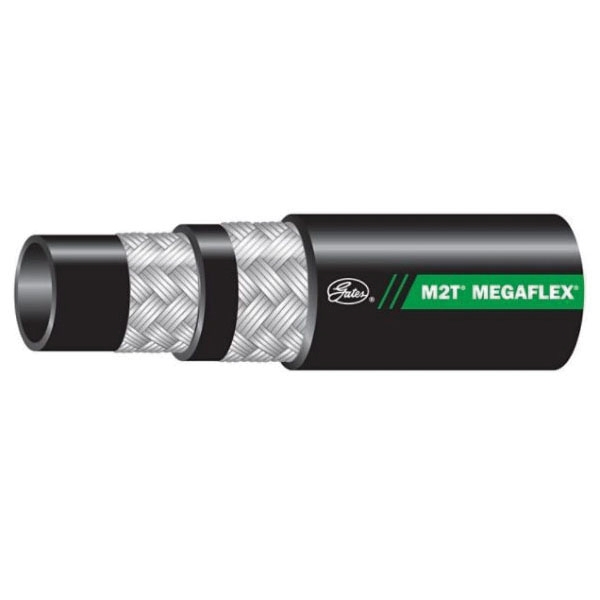

Gates® Megaflex® Hydraulic Braided Hose, Series: M2T®, Nominal Size: 3/8 in, Dash Size: 06, 0.7 in OD, 3/8 in ID, 5000 psi, SAE Rating: SAE 100R16, Material Construction: Synthetic Rubber, Type C2 Nitrile Cover, Construction: 2-Braided High-Tensile Steel Wire, Black, 2 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 212 deg F High
| Bend Radius |
: |
2 in |
| Color |
: |
Black |
| Construction |
: |
2-Braided High-Tensile Steel Wire |
| Cover Material |
: |
Type C2 Nitrile |
| Dash Size |
: |
06 |
| Inside Diameter |
: |
3/8 in |
| Material |
: |
Nitrile |
| Material Construction |
: |
Synthetic Rubber |
| Nominal Size |
: |
3/8 in |
| Outside Diameter |
: |
0.7 in |
| Pressure Rating |
: |
5000 psi |
| Product Type |
: |
Braided Hose |
| Resistance Properties |
: |
Abrasion, Oil, Weather |
| SAE Rating |
: |
SAE 100R16 |
| Series |
: |
M2T® |
| Sub Brand |
: |
Megaflex® |
| Temperature High |
: |
212 deg F |
| Temperature Low |
: |
-40 deg F |
- Easy to route and to install in tight areas
- M2T® hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 600,000 impulse cycles at 50% of EN 857 2SC bend radii
- Meets flame-resistant acceptance designation MSHA 2G
- M2T® hose has smaller exterior dimensions and significantly tighter bend radius than competitive R16 hoses
- Tighter bend radius reducing hose assembly length to save money
- Validated with MegaCrimp®
- Black, oil, abrasion and weather-resistant, synthetic rubber (modified nitrile - Type C2) with color-coded lay line cover
Applications: For high pressure hydraulic oil lines
EN 857 2SC and EN 853 2SN | ISO 11237 2SC R16, ISO 1436 2SN R2 Specified | MSHA 2G Specified | SAE 100R16, SAE 100R2 Certified
-
