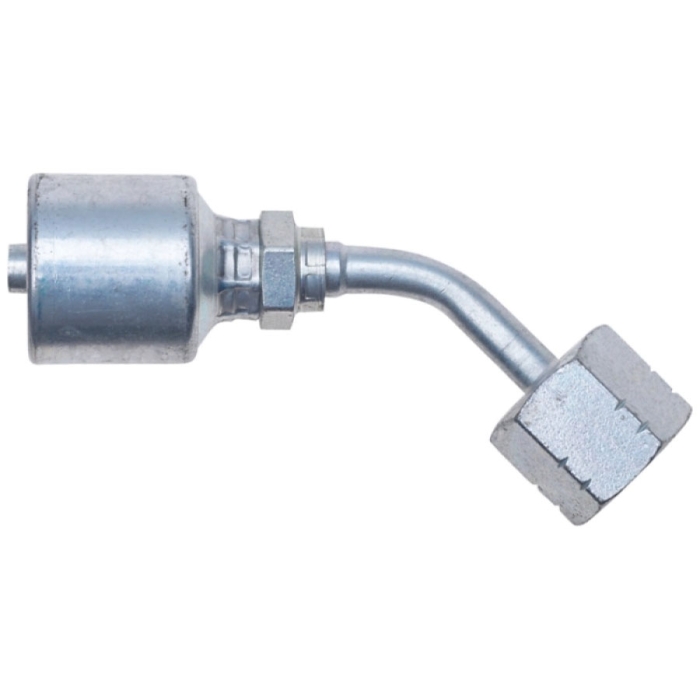

Gates® MegaCrimp® 8G-8FKX45 TuffCoat® Female Komatsu Swivel Crimp Hose 45 deg Elbow, 1/2 in x 22 mm

Gates® MegaCrimp® Crimp Hose 45 deg Elbow, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: Komatsu Swivel, Gender 2: Female, Connection Size 2: 22 mm, Nominal Size: 22 mm, Thread Size 2: M22 x 1.5, Hex Size: 27 mm, Cut-Off Factor: 2.37 in, Finish: TuffCoat®

MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus - MegaCrimp™ couplings are a fully qualified EN-performance coupling.

• One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
• MegaCrimp couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
• Surpassed one million impulse cycles during design testing
• Environmentally-friendly TuffCoat® plating for 3x better corrosion resistance than SAE standard
• These female swivels have been marked with two small notches on the hex to identify them as the Komatsu style

• Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
