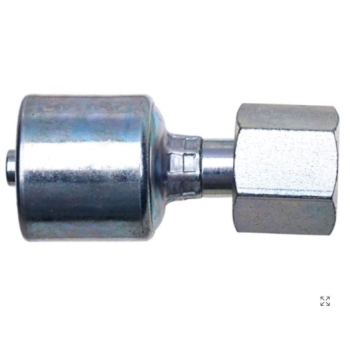

Gates® MegaCrimp® Crimp Straight Hose Fitting with O-Ring, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: DIN Heavy 24 deg Cone Swivel, Gender 2: Female, Connection Size 2: 12 mm, Nominal Size: 12 mm, Thread Size 2: M20 x 1.5, Hex Size: 24 mm, Cut-Off Factor: 1.18 in, Finish: TuffCoat®, Dimensions: 2.28 in L
| Connection Size 1 |
: |
5/16 in |
| Connection Size 2 |
: |
12 mm |
| Connection Type |
: |
Hose~DIN Heavy Female Swivel |
| Connection Type 1 |
: |
Hose |
| Connection Type 2 |
: |
DIN Heavy 24 deg Cone Swivel |
| Cut-Off Factor |
: |
1.18 in |
| Dimensions |
: |
2.28 in L |
| Finish |
: |
TuffCoat® |
| Fitting Type |
: |
Straight Hose Fitting |
| Gender 2 |
: |
Female |
| Hex Size |
: |
24 mm |
| Hose Dash Size |
: |
05 |
| Nominal Size |
: |
12 mm |
| Shape |
: |
Straight |
| Sub Brand |
: |
MegaCrimp® |
| Thread Size 2 |
: |
M20 x 1.5 |
MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus - MegaCrimp™ couplings are a fully qualified EN-performance coupling.
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
- MegaCrimp couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
- Surpassed one million impulse cycles during design testing
- Environmentally-friendly TuffCoat® plating for 3x better corrosion resistance than SAE standard
