Gates® 12G-22MDL 12G-22MDL

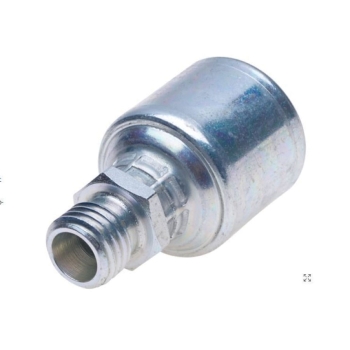

Gates® MegaCrimp® 12G-22MDL TuffCoat® Male DIN Light 24 deg Cone Crimp Straight Hose Fitting, 3/4 in x 22 mm

  1. pin-int

Gates® MegaCrimp® Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: DIN Light 24 deg Cone, Gender 2: Male, Connection Size 2: 22 mm, Nominal Size: 22 mm, Thread Size 2: M30 x 2, Hex Size: 32 mm, Cut-Off Factor: 1.14 in, Finish: TuffCoat®, Dimensions: 3.15 in L

Connection Size 1      :      3/4 in
Connection Size 2      :      22 mm
Connection Type      :      Hose~DIN Light Male
Connection Type 1      :      Hose
Connection Type 2      :      DIN Light 24 deg Cone
Cut-Off Factor      :      1.14 in
Dimensions      :      3.15 in L
Finish      :      TuffCoat®
Fitting Type      :      Straight Hose Fitting
Gender 2      :      Male
Hex Size      :      32 mm
Hose Dash Size      :      12
Nominal Size      :      22 mm
Shape      :      Straight
Sub Brand      :      MegaCrimp®
Thread Size 2      :      M30 x 2

MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus - MegaCrimp™ couplings are a fully qualified EN-performance coupling.

  • One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
  • MegaCrimp couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
  • Surpassed one million impulse cycles during design testing
  • Environmentally-friendly TuffCoat® plating for 3x better corrosion resistance than SAE standard
