Gates® 32842502

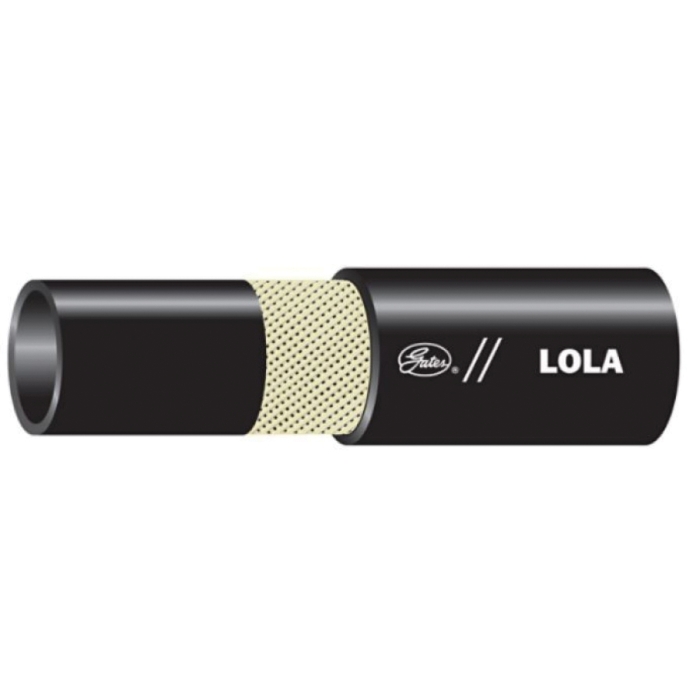

Gates® LOLA Black Synthetic Rubber (Type C Nitrile) Lock-On Fuel Hose, 5/16 in, 300 psi

  1. pin-int

Gates® Lock-On Fuel Hose, Series: LOLA, Nominal Size: 5/16 in, Dash Size: 05, 0.55 in OD, 5/16 in ID, 300 psi, Material Construction: Synthetic Rubber (Type C Nitrile), Type C2 Nitrile Cover, Construction: 1-Fiber Braid, Black, 3 in Bend Radius, Resistance Properties: Abrasion, Oil, Heat, -40 deg F Low, 212 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3 in
Color      :      Black
Construction      :      1-Fiber Braid
Cover Material      :      Type C2 Nitrile
Dash Size      :      05
Inside Diameter      :      5/16 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber (Type C Nitrile)
Nominal Size      :      5/16 in
Outside Diameter      :      0.55 in
Pressure Rating      :      300 psi
Product Type      :      Fuel Hose
Resistance Properties      :      Abrasion, Oil, Heat
Series      :      LOLA
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F

Lock-on hose and couplings are not recommended for pressure surge or critical applications such as permanent piping in residential or commercial buildings.

  • Validated with Lock-On Plus reusable couplings
  • 4:1 design factor
  • Oil and abrasion-resistant synthetic rubber (modified nitrile - Type C2) cover

Applications: For petroleum-based hydraulic oils, water, glycol antifreeze solutions, engine lubricating oils and air, low pressure cleaning and pneumatic systems, return lines and low pressure lines

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_46511606_CAT.pdf
