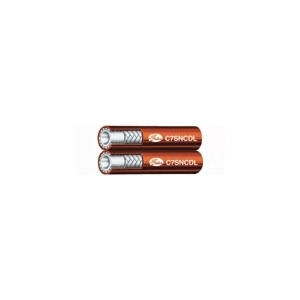

Gates® GT7NCDL Orange Polyester Non-Conductive Dual Line Hydraulic Hose, 1/4 in, 2750 psi

Gates® 4472-0206

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 4GT7NCDL
  • MPN: 4472-0206
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Non-Conductive Dual Line Hydraulic Hose, Series: GT7NCDL, Nominal Size: 1/4 in, Dash Size: 04, 0.48 in OD, 1/4 in ID, 2750 psi, SAE Rating: SAE 100R7, Material Construction: Polyester, Type U Urethane Cover, Construction: Braided Synthetic Fiber, Orange, 1.3 in Bend Radius, Resistance Properties: Aging, High-Temperature, Weathering, -65 deg F Low, 200 deg F High

Bend Radius      :      1.3 in
Color      :      Orange
Construction      :      Braided Synthetic Fiber
Cover Material      :      Type U Urethane
Dash Size      :      04
Inside Diameter      :      1/4 in
Material      :      Polyester
Material Construction      :      Polyester
Nominal Size      :      1/4 in
Outside Diameter      :      0.48 in
Pressure Rating      :      2750 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Aging, High-Temperature, Weathering
SAE Rating      :      SAE 100R7
Series      :      GT7NCDL
Temperature High      :      200 deg F
Temperature Low      :      -65 deg F

Applications: For power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery
