Gates® 6GLX-6FSX
  1. pin-int

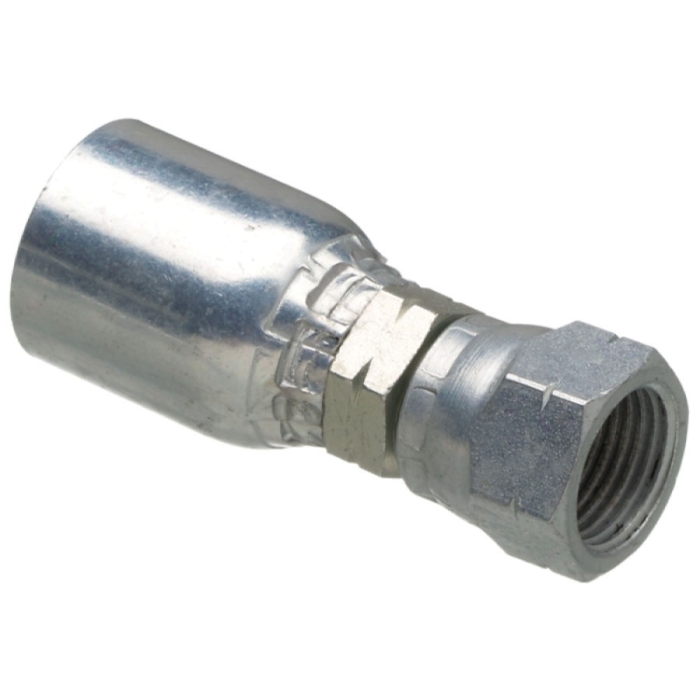

Gates® GLX® TuffCoat® Steel Female SAE 45 deg Flare Swivel Crimp Straight Hose Fitting, 3/8 in

Gates® 6GLX-6FSX

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 6GLX-6FSX
  • MPN: 6GLX-6FSX
  • UPC: 770075382591
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Crimp Straight Hose Fitting, Series: GLX®, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 45 deg Flare Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 5/8 x 3/4 in, 1000 psi, Cut-Off Factor: 1.35 in, Material Construction: Steel, Finish: TuffCoat®, Dimensions: 2.44 in L

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type      :      Hose~SAE Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 45 deg Flare Swivel
Cut-Off Factor      :      1.35 in
Dimensions      :      2.44 in L
Finish      :      TuffCoat®
Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Hex Size      :      5/8 x 3/4 in
Hose Dash Size      :      06
Material      :      Steel
Material Construction      :      Steel
Nominal Size      :      3/8 in
Pressure Rating      :      1000 psi
Series      :      GLX®
Shape      :      Straight
Thread Size 2      :      5/8-18

GLX® couplings are specially designed as a crimped solution for use on all types of Gates® textile reinforced hoses with working pressures up to 1000 psi. These steel couplings come in a wide range of terminations and are plated with Gates® TuffCoat® plating making them five times more corrosion-resistant than standard plating.

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
