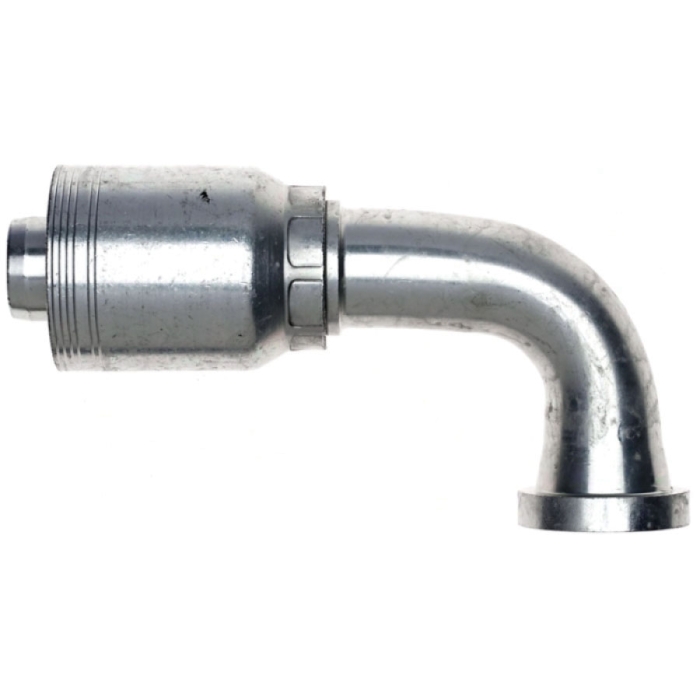

Gates® GlobalSpiral™ Max Crimp Hose 90 deg Elbow, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: Code 62 Flange, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, 5000 psi, Cut-Off Factor: 4.68 in, Material Construction: Steel, Finish: TuffCoat®, 250 deg F
| Connection Size 1 |
: |
1-1/2 in |
| Connection Size 2 |
: |
1-1/2 in |
| Connection Type |
: |
Hose~Code 62 Flange |
| Connection Type 1 |
: |
Hose |
| Connection Type 2 |
: |
Code 62 Flange |
| Cut-Off Factor |
: |
4.68 in |
| Finish |
: |
TuffCoat® |
| Fitting Type |
: |
90 deg Elbow |
| Hose Dash Size |
: |
24 |
| Material |
: |
Steel |
| Material Construction |
: |
Steel |
| Nominal Size |
: |
1-1/2 in |
| Pressure Rating |
: |
5000 psi |
| Shape |
: |
90 deg Elbow |
| Sub Brand |
: |
GlobalSpiral™ Max |
| Temperature Rating |
: |
250 deg F |
1-1/2 in no-skive coupling design for high-pressure spiral wire hose. No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system.
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Coated with TuffCoat® plating, more than five times better corrosion-resistant than SAE ASTM B117 specification
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
