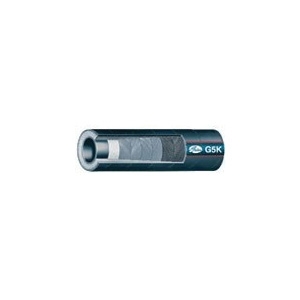

Gates® Hydraulic Spiral Hose, Series: G5K, Nominal Size: 1-1/2 in, Dash Size: 24, 2.26 in OD, 1-1/2 in ID, 5000 psi, SAE Rating: SAE 100R13, Material Construction: Type A Neoprene, Type A Neoprene Cover, Construction: 6-Alternating Layers of Spiraled High-Tensile Steel Wire, Black, 20 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 250 deg F High
| Bend Radius |
: |
20 in |
| Color |
: |
Black |
| Construction |
: |
6-Alternating Layers of Spiraled High-Tensile Steel Wire |
| Cover Material |
: |
Type A Neoprene |
| Dash Size |
: |
24 |
| Inside Diameter |
: |
1-1/2 in |
| Material |
: |
Neoprene |
| Material Construction |
: |
Type A Neoprene |
| Nominal Size |
: |
1-1/2 in |
| Outside Diameter |
: |
2.26 in |
| Pressure Rating |
: |
5000 psi |
| Product Type |
: |
Hydraulic Spiral Hose |
| Resistance Properties |
: |
Oil |
| SAE Rating |
: |
SAE 100R13 |
| Series |
: |
G5K |
| Temperature High |
: |
250 deg F |
| Temperature Low |
: |
-40 deg F |
Applications: Extremely high-pressure hydraulic applications
