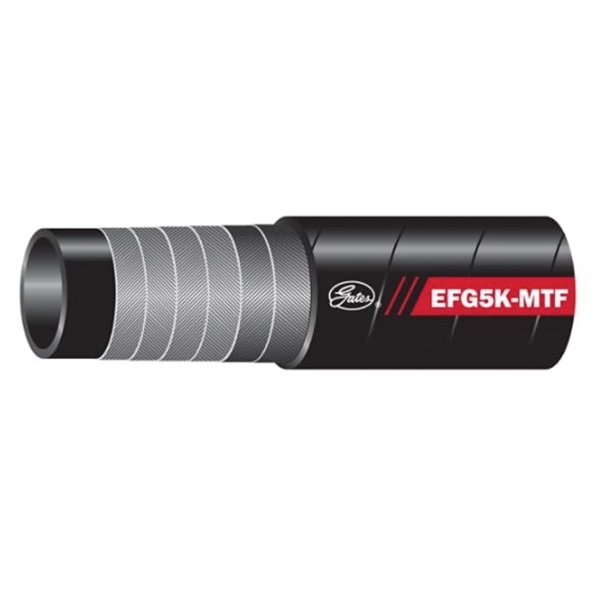

Gates® EFG5K-MTF Black Synthetic Rubber Hydraulic Spiral Hose, 1/2 in, 5000 psi

Gates® Hydraulic Spiral Hose, Series: EFG5K-MTF, Nominal Size: 1/2 in, Dash Size: 08, 0.94 in OD, 1/2 in ID, 5000 psi, SAE Rating: SAE 100R13, Material Construction: Synthetic Rubber, MegaTuff® UHMWPE Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 3-1/2 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 250 deg F High

• EFG5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
• Superior flex impulse performance tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii
• With the Gates special MegaTuff® cover which offers 300 times the abrasion-resistant of the standard EFG5K cover as per ISO 6945, superior ozone and weather-resistant
• -6 to -20 validated with GlobalSpiral™, -24, -32 with GlobalSpiral™ maximum
• Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
• EFG5K-MTF MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13
• Meets flame-resistant acceptance designation MSHA 2G
• 5000 psi constant pressure for all ID's
• Extremely flexible
• Black, oil, abrasion and weather-resistant MegaTuff® with color-coded lay line cover

Applications: For extremely high pressure and high impulse hydraulic applications

ABS Approved | DNV-GL Certified | EN 856 4SP, EN 856 R13 | ISO 18752 Grade D, ISO 3862 Type R13 Specified | MSHA 2G Specified | SAE 100R13 Certified
