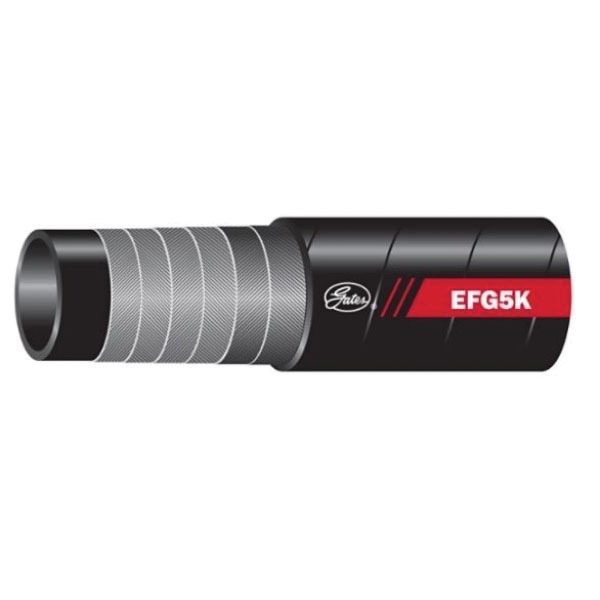

Gates® EFG5K Black Synthetic Rubber Hydraulic Spiral Hose, 1-1/2 in, 5000 psi

Gates® 4651-2208

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 24EFG5K
  • MPN: 4651-2208
  • UPC: 770075378037
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Hydraulic Spiral Hose, Series: EFG5K, Nominal Size: 1-1/2 in, Dash Size: 24, 2.26 in OD, 1-1/2 in ID, 5000 psi, SAE Rating: SAE 100R13, Material Construction: Synthetic Rubber, Type A Polychloroprene Cover, Construction: 6-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 10 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 250 deg F High

Bend Radius      :      10 in
Color      :      Black
Construction      :      6-Alternating Layers of Spiraled, High-Tensile Steel Wire
Cover Material      :      Type A Polychloroprene
Dash Size      :      24
Inside Diameter      :      1-1/2 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1-1/2 in
Outside Diameter      :      2.26 in
Pressure Rating      :      5000 psi
Product Type      :      Hydraulic Spiral Hose
Resistance Properties      :      Oil
SAE Rating      :      SAE 100R13
Series      :      EFG5K
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F
  • EFG5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii
  • Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
  • EFG5K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13
  • Meets flame-resistant acceptance designation MSHA 2G
  • 5000 psi constant pressure for all ID's
  • Black, oil-resistant, synthetic rubber (polychloroprene - Type A) with color-coded lay line cover

Applications: For extremely high pressure and high impulse hydraulic applications

Prop Warning ABS Approved | DNV-GL Certified | EN 856 4SP/4SH, EN 856 R13 | ISO 18752, ISO 3862 R13 Specified | MSHA 2G Specified | SAE 100R13 Certified
