Gates® 4651-1427

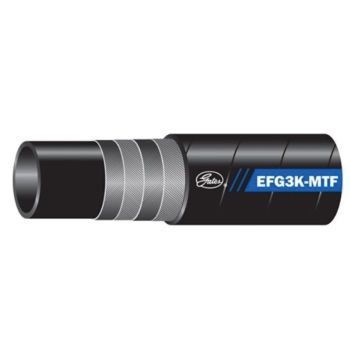

Gates® EFG3K-MTF Black Synthetic Rubber (Type C Nitrile) Hydraulic Spiral Hose, 1-1/4 in, 3000 psi

  1. pin-int

Gates® Hydraulic Spiral Hose, Series: EFG3K-MTF, Nominal Size: 1-1/4 in, Dash Size: 20, 1.85 in OD, 1-1/4 in ID, 3000 psi, SAE Rating: SAE 100R12, Material Construction: Synthetic Rubber, MegaTuff® Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 8.2 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 250 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      8.2 in
Color      :      Black
Construction      :      4-Alternating Layers of Spiraled, High-Tensile Steel Wire
Cover Material      :      MegaTuff®
Dash Size      :      20
Inside Diameter      :      1-1/4 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1-1/4 in
Outside Diameter      :      1.85 in
Pressure Rating      :      3000 psi
Product Type      :      Hydraulic Spiral Hose
Resistance Properties      :      Abrasion, Oil, Weather
SAE Rating      :      SAE 100R12
Series      :      EFG3K-MTF
Temperature High      :      250 deg F
Temperature Low      :      -40 deg F
  • EFG3K hose is compatible with bio-degradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 1000000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii
  • With the Gates special MegaTuff® cover which offers 300 times the abrasion-resistant of the standard EFG3K cover as per ISO 6945, superior ozone and weathering-resistant
  • -20 validated with GlobalSpiral™, -24 to -32 with GlobalSpiral™ Plus
  • EFG3K-MTF is rated at 1/2 the SAE 100R12 minimum bend radius
  • Up to 40% of EN 856 4SP bend radius at rated working pressure
  • Black, oil-, abrasion- and weather-resistant MegaTuff® with color coded layline cover

Applications: Extremely high-pressure and high impulse hydraulic applications

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_46511606_CAT.pdf
