WIKA® 9690217

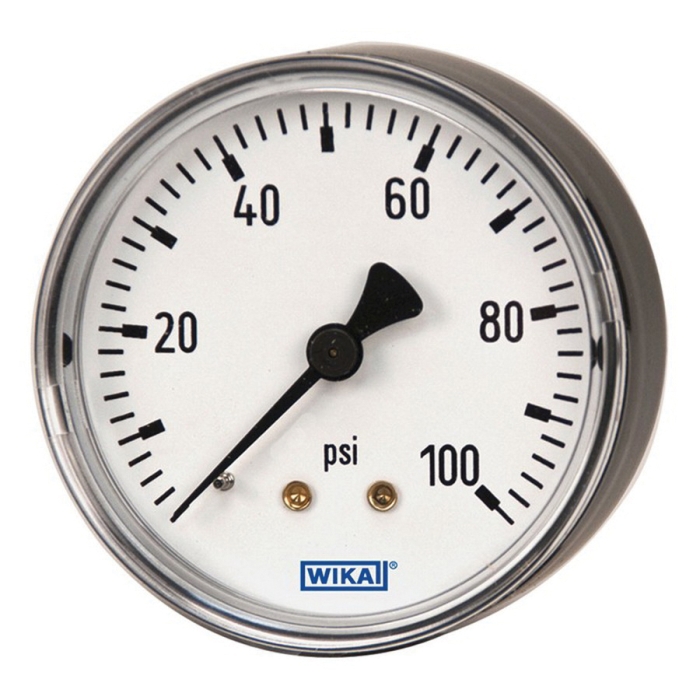

Dry Standard Pressure Gauge, 1-1/2 in Dial, 0 - 30 psi

  • Manufacturer: WIKA Instrument
  • Brand: WIKA®
  • ARGPN: 9690217
  • MPN: 9690217
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

WIKA® Dry Standard Pressure Gauge, Series: 111.12, Measuring System: psi, Pressure Range: 0 - 30 psi, Connection Size: 1/8 in NPT, 1-1/2 in Dial Size, +3/2/3% Span Accuracy, -40 to 140 deg F Ambient, 140 deg F Media, Analog Display, Center Back Mount, ABS Case, ABS Pointer, Finish: Black, Dimensions: 1.61 in W x 1.83 in D

Accuracy      :      +3/2/3% Span
Case Material      :      ABS
Connection Size      :      1/8 in NPT
Dial Size      :      1-1/2 in
Dimensions      :      1.61 in W x 1.83 in D
Display Type      :      Analog
Finish      :      Black
Measuring System      :      psi
Mounting Type      :      Center Back
Pointer Material      :      ABS
Pressure Range      :      0 - 30 psi
Product Type      :      Pressure Gauge
Series      :      111.12
Temperature Rating      :      -40 to 140 deg F Ambient, 140 deg F Media

The model 111 pressure gauges are based on the proven Bourdon tube measuring system. On pressurisation, the deflection of the Bourdon tube, proportional to the incident pressure, is transmitted to the movement via a link and indicated. The modular design enables a multitude of combinations of case materials, process connections, nominal sizes and scale ranges. Due to this high variance, the instrument is suitable for use in a wide range of applications within industry. For mounting in control panels, the pressure gauges can, depending on the process connection, be fitted with a surface mounting flange or with a triangular bezel and mounting bracket. The standard version of the model 111 is manufactured, cost optimised on modern production lines, in volumes of several million instruments per year.

  • Copper alloy wetted parts
  • Working pressure - 3/4 of full scale value steady, 2/3 of full scale value fluctuating, full scale value short
  • Temperature error - additional error when temperature changes from reference temperature of 68 deg F +/-0.4% of span for every 18 deg F rising or falling
  • Pressure connection - copper alloy
  • Copper alloy Bourdon tube, = 870 psi (60 bar) C-shape, > 870 psi (60 bar) helical
  • Movement - copper alloy
  • White plastic dial with stop pin, black or black and red lettering
  • Window - snap-in acrylic
  • Black case, black pointer

Applications: Hydraulic and pneumatic systems, pumps, compressors, water systems, regulators, suitable for fluid medium which does not clog connection port or corrode copper alloy
