Dixon® STBC188
  1. pin-int

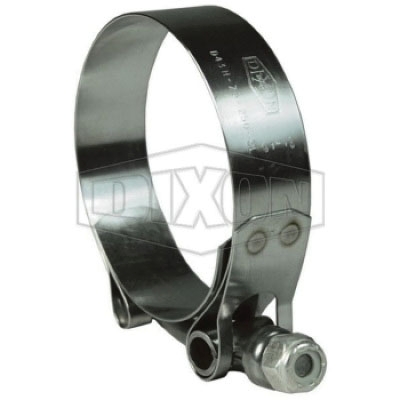

Dixon® STBC 300 Stainless Steel T-Bolt Clamp, 1-7/8 in, 3/4 in W, 0.025 in Thick

Dixon® STBC188

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: DIXSTBC188
  • MPN: STBC188
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® T-Bolt Clamp, Series: STBC, Nominal Size: 1-7/8 in, 1.94 in Maximum Clamp Diameter, 1.69 in Minimum Clamp Diameter, Locking Style: Bolt, Torque Rating: 50 in-lb, Material Construction: 300 Stainless Steel, 3/4 in Width, 0.025 in Thickness

Locking Style      :      Bolt
Material      :      Stainless Steel
Material Construction      :      300 Stainless Steel
Maximum Clamp Diameter      :      1.94 in
Minimum Clamp Diameter      :      1.69 in
Nominal Size      :      1-7/8 in
Product Type      :      T-Bolt Clamp
Series      :      STBC
Thickness      :      0.025 in
Torque Rating      :      50 in-lb
Width      :      3/4 in
  • 300 stainless steel band and bolt

Instructions: T-bolt clamps can be applied with a standard 7/16 in socket wrench.

Safety Notes: Not for use with pneumatic tools.

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_1113R_CAT.pdf
  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STBC1088_SS.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_STBC150_TD.pdf
