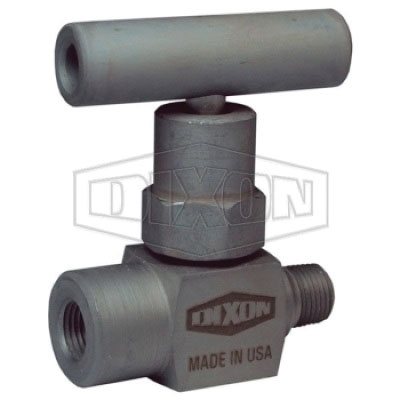

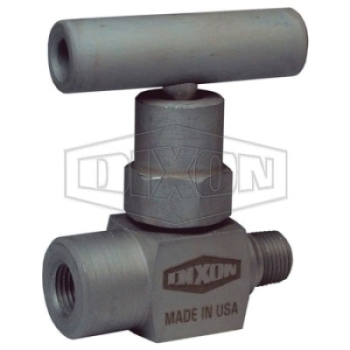

Dixon® Mini Needle Valve, Nominal Size: 1/8 in, Connection Type: MPT x FPT, Actuator Type: T-Handle, Material Construction: Steel, 316 Stainless Steel Trim, FKM Seal, Flow Coefficient: 0.42 Cv, Finish: Zinc/Nickel-Plated, 10000 psi
| Actuator Type |
: |
T-Handle |
| Connection Type |
: |
MPT x FPT |
| Finish |
: |
Zinc/Nickel-Plated |
| Flow Coefficient |
: |
0.42 Cv |
| Material |
: |
Steel |
| Material Construction |
: |
Steel |
| Nominal Size |
: |
1/8 in |
| Pressure Rating |
: |
10000 psi |
| Product Type |
: |
Needle Valve |
| Seal Material |
: |
FKM |
| Trim Material |
: |
316 Stainless Steel |
- A FKM O-ring seal and a PTFE back-up ring below the threads protects the mini valve from corrosion and galling
- Stem threads are rolled for strength and ease of operation
- Metal-to-metal hard seat design is 100% helium leak tested to 1 x 10-4 ml/s at 200 psi
Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
Cut Sheet
