Dixon® IXF24-3 IXF24-3

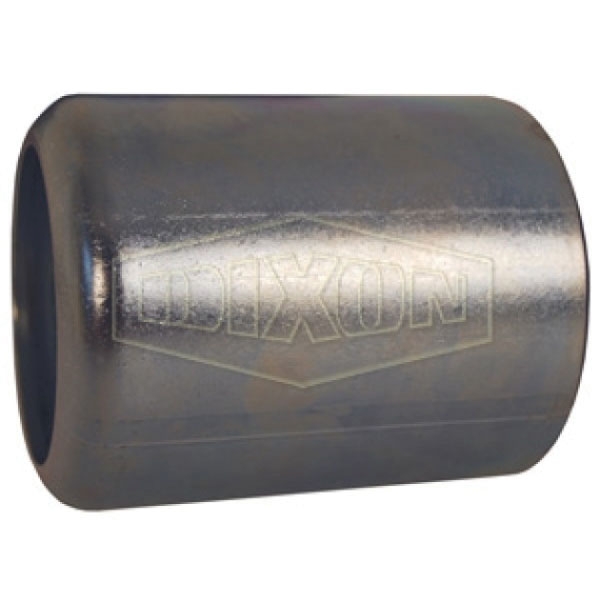

Dixon® IXF24-3 Plated Carbon Steel Internal Expansion Ferrule, 1-1/2 in, 2-1/8 in ID

  1. pin-int

Dixon® Internal Expansion Ferrule, Nominal Size: 1-1/2 in, 2-1/8 in ID, Material Construction: Carbon Steel, Finish: Plated, For Use With: 2-4/64 - 2-8/64 in Hose, ISM, IXH and IXV Style Holedall Internal Expansion Stems

California residents see Prop 65 WARNINGS

Finish      :      Plated
For Use With      :      2-4/64 - 2-8/64 in Hose, ISM, IXH and IXV Style Holedall Internal Expansion Stems
Inside Diameter      :      2-1/8 in
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      1-1/2 in
Shape      :      Ferrule
  • Internally expanded couplings are essential when maximum flow of media is important
  • Reduces turbulence through hose
  • Excellent sealing and retention characteristics
  • Outperforms band clamps
  • Easy and consistent installation

Safety Notes: Dixon® Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon® Holedall products.

  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Consult Dixon® for recommendations on usage.
  • Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Internally expanded holedall couplings are not to be used with plastic lined chemical hose.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting.
  • The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material.
  • Compatibility of ferrule material with the environment in which it will be used is recommended.
  • Consult the compatibility chart or the Dixon® factory for material compatibility.

    Applications: For concrete placement, grout and plaster, food, dairy, pharmaceutical as well as other applications where increased flow capacity is important
