Dixon® 6HSF6-B
  1. pin-int

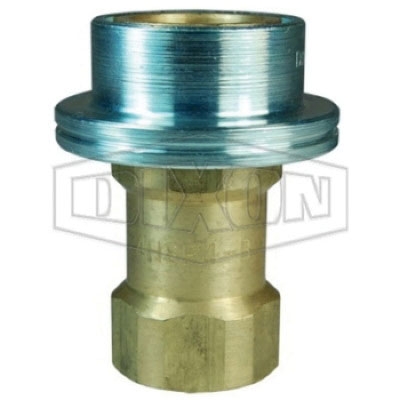

Dixon® HS Series Brass ISO-B Steam Interchange Coupler, 3/4 in Quick Disconnect x 3/4 in FNPTF

Dixon® 6HSF6-B

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: B16-600S
  • MPN: 6HSF6-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® ISO-B Steam Interchange Coupler, Series: HS, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-5/16 in, Material Construction: Brass, Dimensions: 2.48 in OD x 3.55 in L, -70 to 400 deg F

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      2.48 in OD x 3.55 in L
Gender 2      :      Female
Hex Size      :      1-5/16 in
Material      :      Brass
Material Construction      :      Brass
Series      :      HS
Shape      :      Coupler
Temperature Rating      :      -70 to 400 deg F
Thread Size 2      :      3/4-14
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Coupler has a large-plated steel sleeve designed for easy gripping with gloves
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • EPDM steam-grade seals are standard
  • Couplers have a redundant O-ring sealing system (dual O-rings with PTFE back-up)
  • Valve seals are crimped in place to maintain integrity during excessive flow conditions
  • Special high-temperature EPDM O-rings designed for steam service
  • Interchangeable to ISO 7241 Series B
  • Parker 60 Series steam couplings

Applications: For steam applications

Safety Notes: Maximum working pressure has been calculated using standard saturated steam at 194 deg C for general-purpose continuous service.

  • For advanced operating pressure or super heated steam applications, contact Dixon® for further information.
  • Do not disconnect under pressure.

    • Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_6HSF6B_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_6HSF6B_SS.pdf
