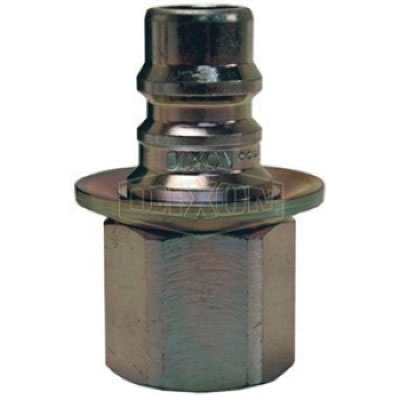

Dixon® Water-Blast Interchange Plug, Series: EA, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/8 in, 10000 psi, Material Construction: Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.62 in OD x 2.35 in L, -40 to 250 deg F
| Connection Size 1 |
: |
1/2 in |
| Connection Size 2 |
: |
1/2 in |
| Connection Type 1 |
: |
Quick Disconnect |
| Connection Type 2 |
: |
NPTF |
| Dimensions |
: |
1.62 in OD x 2.35 in L |
| Finish |
: |
Trivalent Chrome-Plated |
| Gender 2 |
: |
Female |
| Hex Size |
: |
1-1/8 in |
| Material |
: |
Steel |
| Material Construction |
: |
Steel |
| Pressure Rating |
: |
10000 psi |
| Series |
: |
EA |
| Shape |
: |
Plug |
| Temperature Rating |
: |
-40 to 250 deg F |
| Thread Size 2 |
: |
1/2-14 |
- Machined from solid high-strength steel bar stock and hardened
- Steel componentry is plated using RoHS compliant trivalent chrome
- Plug-mounted sleeve guard protects against accidental disconnection
- Smooth bore full flow design ensures maximum flow with minimal pressure drop
- Steel body components maximize service life by resisting the effects of brinneling and internal erosion
- Heavy-duty knurled sleeve with locking pin provides maximum protection against brinneling and accidental disconnection
- Nitrile (Buna-N) seals are standard
- Water-blast interchange
- Compatible with Parker series-WB, Aeroquip FD69, Snap-Tite 56-series
Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_EA4F4_CAT.pdf
-
Cut Sheet
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_EA4F4_SS.pdf
