Dixon® 6DM6-B 6DM6-B

Dixon® 6DM6-B

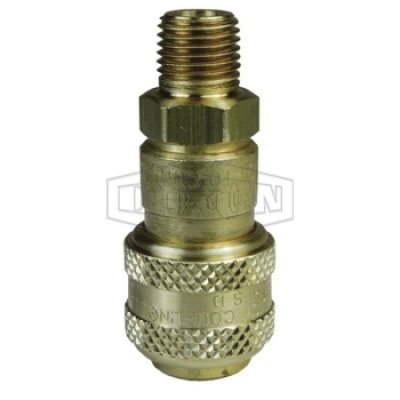

Dixon® D Series Brass Pneumatic Automatic Industrial Interchange Coupler, 3/4 in Quick Disconnect x 3/4 in MNPTF

  • Manufacturer: Dixon Valve & Coupling
  • Brand: Dixon®
  • ARGPN: 6DM6-B
  • MPN: 6DM6-B
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

Dixon® Pneumatic Automatic Industrial Interchange Coupler, Series: D, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-5/16 in, Material Construction: Brass, Dimensions: 1.9 in OD x 2.95 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type 1      :      Quick Disconnect
Connection Type 2      :      NPTF
Dimensions      :      1.9 in OD x 2.95 in L
Gender 2      :      Male
Hex Size      :      1-5/16 in
Material      :      Brass
Material Construction      :      Brass
Series      :      D
Shape      :      Coupler
Temperature Rating      :      -40 to 250 deg F
Thread Size 2      :      3/4-14
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel prong valve
  • Foster 3, 4, 5 and 6 Series
  • Parker 30 Series automatic interchange
  • Hansen 3000, 4000, 5000 and 6000

Safety Notes: It is important to be safe when installing quick disconnect couplings into a pneumatic circuit.

  • Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18 in long, between the tool and the coupling, to prevent damage to the coupling.
  • To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
    • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_2FS3S_CAT.pdf
    • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_4DM6B_SS.pdf
