Dixon® H5232-A
  1. pin-int

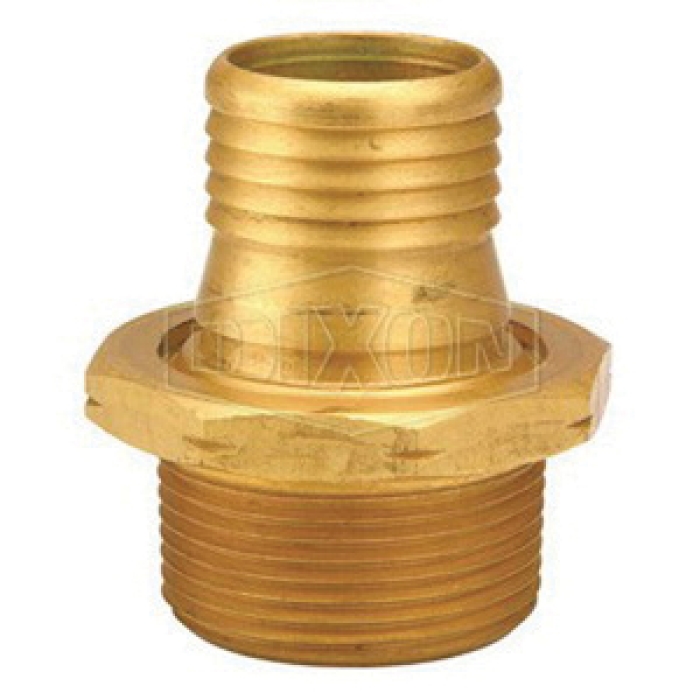

Dixon® 520-H Brass Permanently Attached Petroleum Coupling, 1-1/2 in MNPT

Dixon® H5232-A

  • Manufacturers: Dixon Valve & Coupling
  • Brand Name: Dixon®
  • ARGPN: H5232-A
  • MPN: H5232-A
  • UPC: 697464408314
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Dixon® Permanently Attached Petroleum Coupling, Series: 520-H, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1-1/2 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1-1/2 in, Material Construction: Brass, For Use With: Internally Expanding Permanent Coupling-Scovill Style, 2-21/32 in Length

Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Connection Type 1      :      NPT
Connection Type 2      :      NPT
For Use With      :      Internally Expanding Permanent Coupling-Scovill Style
Gender 1      :      Male
Gender 2      :      Male
Length      :      2-21/32 in
Material      :      Brass
Material Construction      :      Brass
Series      :      520-H
Shape      :      Coupling
  • Male has octagonal facets for tightening with a wrench
  • The stem is expanded to nominal ID of hose for a rigid, uniform, full-flow area
  • Couplings are pre-lubricated for assembly
  • Stems are machined from bar stock or solid brass forgings

Applications: For discharge and suction service and commonly used in the transfer of fuel to homes, airplanes, ships, internal expansion only

Prop Warning API 1529 6th Edition Certified|Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5211-A-BU_CAT.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Dixon_H5232-A_TD.pdf
