Campbell® 5410535
  1. pin-int

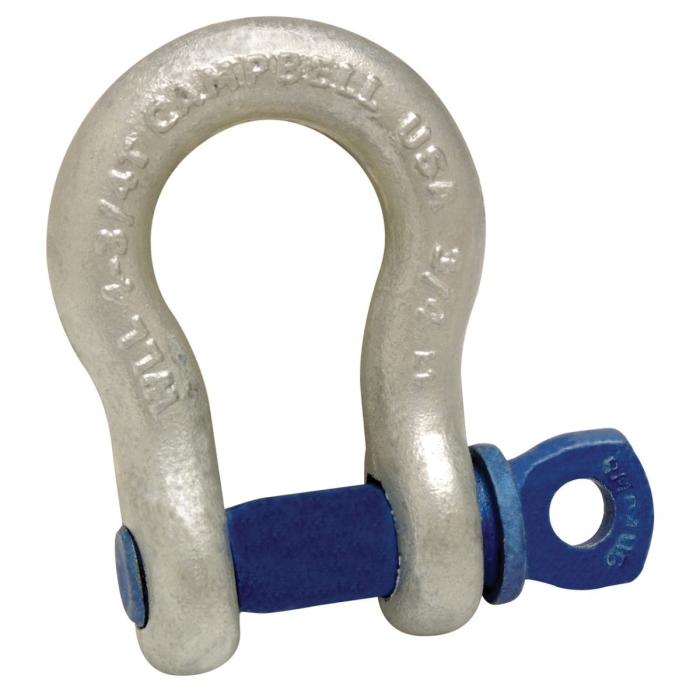

Campbell® C-419-G Galvanized Blue Carbon Steel Screw Pin Anchor Shackle, 5/16 in, 3/4 ton

Campbell® 5410535

  • Manufacturers: Apex Tool Group
  • Brand Name: Campbell®
  • ARGPN: 541-0535
  • MPN: 5410535
  • UPC: 020418076190
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Campbell® Screw Pin Anchor Shackle, Series: C-419-G, Load Capacity: 3/4 ton, Size: 5/16 in, 3/8 in Pin Diameter, Screw Pin, Inside Length: 1-1/4 in, Inside Width: 27/32 in, 17/32 in Opening, Eye Outer Size: 27/32 in, Material Construction: Drop Forged Carbon Steel, Finish: Galvanized, Blue

Color      :      Blue
Eye Outer Size      :      27/32 in
Finish      :      Galvanized
Inside Length      :      1-1/4 in
Inside Width      :      27/32 in
Load Capacity      :      3/4 ton
Material      :      Carbon Steel
Material Construction      :      Drop Forged Carbon Steel
Opening Size      :      17/32 in
Pin Diameter      :      3/8 in
Pin Type      :      Screw
Product Type      :      Anchor Shackle
Series      :      C-419-G
Size      :      5/16 in
  • Working load limit, size, manufacture name, date code and USA permanently marked on each shackle
  • Statistically tested for impact-resistance, tensile strength, hardness, ductility and fatigue
  • 6:1 design factor
  • Made in USA

Prop Warning ASME B30.26 | ASTM A153 | Federal Specification RR-C-271 Type IVA Grade A Class 2

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Campbell_5410335_CAT.pdf
