Brennan 6809-12-12-NWO-FG
  1. pin-int

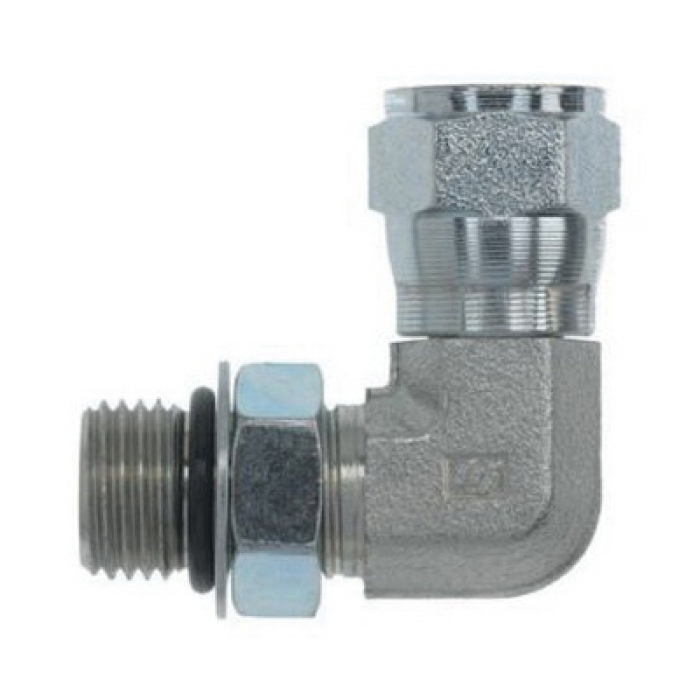

Brennan 6809-NWO-FG Forged Steel 90 deg Elbow, 3/4 in Male ORB x 3/4 in Female SAE 37 deg JIC Swivel

Brennan 6809-12-12-NWO-FG

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • ARGPN: 6809-12-12
  • MPN: 6809-12-12-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Brennan 90 deg Elbow, Series: 6809-NWO-FG, Connection Type 1: SAE ORB, Gender 1: Male, Connection Size 1: 3/4 in, Thread Size 1: 1-1/16-12, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1-1/4 x 1-1/4 in, Dimension Standards: SAE 520281, 5000 psi, Material Construction: Forged Steel

Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Type      :      ORB~JIC Swivel
Connection Type 1      :      SAE ORB
Connection Type 2      :      SAE 37 deg JIC Swivel
Dimension Standards      :      SAE 520281
Fitting Type      :      90 deg Elbow
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      1-1/4 x 1-1/4 in
Material      :      Steel
Material Construction      :      Forged Steel
Pressure Rating      :      5000 psi
Series      :      6809-NWO-FG
Shape      :      90 deg Elbow
Thread Size 1      :      1-1/16-12
Thread Size 2      :      1-1/16-12

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Brennan_2501-16-16-B_CAT.pdf
