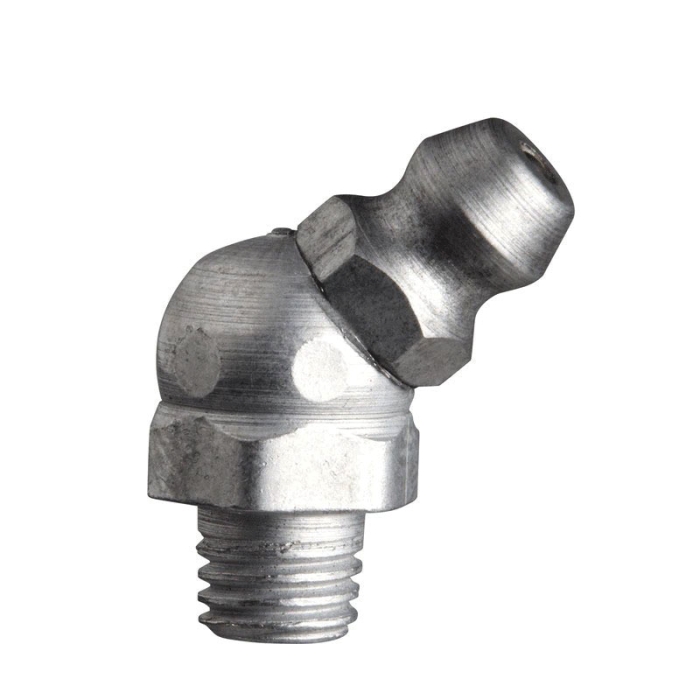

Alemite® 1637-B1 45 deg Zerk Grease Fitting, 1/4-28 UNF Taper Threaded

Alemite® 1637-B1

  • Manufacturers: Alemite Corp
  • Brand Name: Alemite®
  • ARGPN: 1637-B1
  • MPN: 1637-B1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Alemite® 45 deg Zerk Grease Fitting, Connection Size 1: 1/4-28 UNF, Connection Type 1: Taper Threaded, Finish: Zinc-Plated, 13/64 in Length Shank, Hex Size: 3/8 in, Check Valve Type: Ball, 13/16 in Length

Check Valve Type      :      Ball
Connection Size 1      :      1/4-28 UNF
Connection Type 1      :      Taper Threaded
Finish      :      Zinc-Plated
Hex Size      :      3/8 in
Length      :      13/16 in
Product Type      :      Grease Fitting
Shank Length      :      13/64 in

Alemite® 1/4-28 taper thread fittings are used on most cars and trucks, as well as many industrial machines. It is recommended that SAE-LT taper threads be assembled into 1/4-28 UNF, Class 3B, straight threaded holes having a modified maximum minor diameter of 0.2151 in, to provide 75% minimum thread height.

  • 144 hr salt spray base metal protection, 96 hr salt spray coating protection, 5000 psi blowout protection
  • Dirt excluding check ball
  • Trivalent zinc plating

Prop Warning RoHs Compliant

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Alemite_1637B1_CAT.pdf
