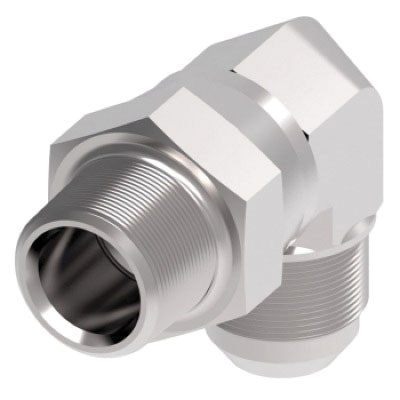

Aeroquip® 90 deg Elbow, Series: 2249, Connection Type 1: SAE 37 deg JIC Flare, Gender 1: Male, Connection Size 1: 5/8 in, Thread Size 1: 7/8-14, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 0.87 x 0.94 in, Dimension Standards: SAE 071602, Material Construction: Carbon Steel, Finish: Dura-Kote, 2.435 in Length, 0.94 in Width, 1.92 in Height, -40 to 250 deg F
Connection Size 1 |
: |
5/8 in |
Connection Size 2 |
: |
1/2 in |
Connection Type |
: |
JIC~NPT |
Connection Type 1 |
: |
SAE 37 deg JIC Flare |
Connection Type 2 |
: |
NPTF |
Dimension Standards |
: |
SAE 071602 |
Finish |
: |
Dura-Kote |
Fitting Type |
: |
90 deg Elbow |
Gender 1 |
: |
Male |
Gender 2 |
: |
Male |
Height |
: |
1.92 in |
Hex Size |
: |
0.87 x 0.94 in |
Length |
: |
2.435 in |
Material |
: |
Steel |
Material Construction |
: |
Carbon Steel |
Series |
: |
2249 |
Shape |
: |
90 deg Elbow |
Temperature Rating |
: |
-40 to 250 deg F |
Thread Size 1 |
: |
7/8-14 |
Thread Size 2 |
: |
1/2-14 |
Width |
: |
0.94 in |
Warranty: 5 Years Limited
Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
-
