Aeroquip® 2071-4-6S
  1. pin-int

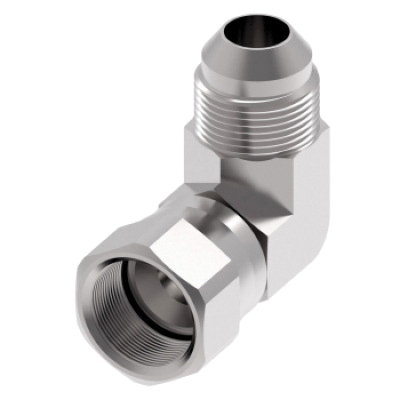

Aeroquip® 2071 Dura-Kote Carbon Steel 90 deg Elbow, 1/4 in Female SAE 37 deg JIC Flare Swivel x 3/8 in Male SAE 37 deg JIC Flare

Aeroquip® 2071-4-6S

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Aeroquip®
  • ARGPN: 2071-4-6S
  • MPN: 2071-4-6S
  • UPC: 678146051592
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Aeroquip® 90 deg Elbow, Series: 2071, Connection Type 1: SAE 37 deg JIC Flare Swivel, Gender 1: Female, Connection Size 1: 1/4 in, Thread Size 1: 7/16-20, Connection Type 2: SAE 37 deg JIC Flare, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 0.55 x 0.56 in, Dimension Standards: SAE 070221, Material Construction: Carbon Steel, Finish: Dura-Kote, 1.06 in Length, 0.56 in Width, 1.19 in Height, -65 to 400 deg F

Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Connection Type      :      JIC Swivel~JIC
Connection Type 1      :      SAE 37 deg JIC Flare Swivel
Connection Type 2      :      SAE 37 deg JIC Flare
Dimension Standards      :      SAE 070221
Finish      :      Dura-Kote
Fitting Type      :      90 deg Elbow
Gender 1      :      Female
Gender 2      :      Male
Height      :      1.19 in
Hex Size      :      0.55 x 0.56 in
Length      :      1.06 in
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      2071
Shape      :      90 deg Elbow
Temperature Rating      :      -65 to 400 deg F
Thread Size 1      :      7/16-20
Thread Size 2      :      9/16-18
Width      :      0.56 in

Warranty: 5 Years Limited

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
