Adaptall 9325-08-22X1.5
  1. pin-int

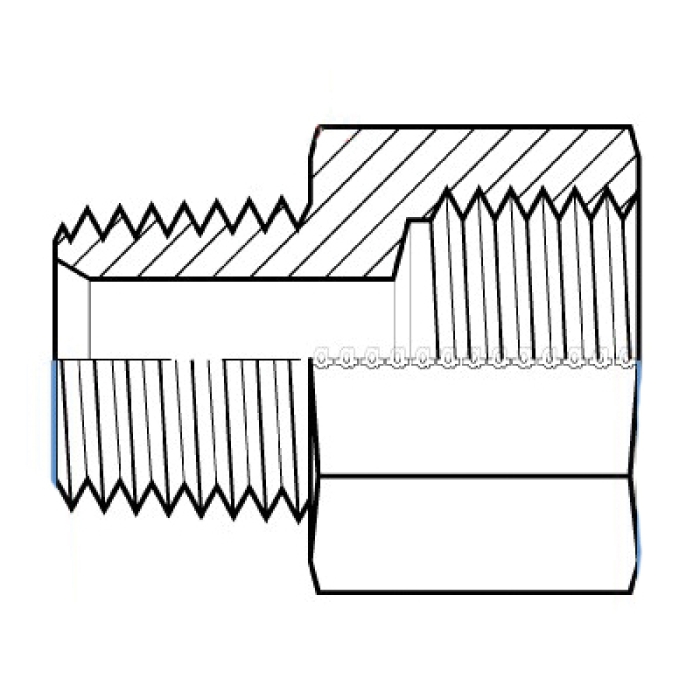

Adaptall 9325 Carbon Steel Rigid Straight Adapter, 22 mm Female Metric x 1/2 in MNPTF

Adaptall 9325-08-22X1.5

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9325-08-22X1.5
  • MPN: 9325-08-22X1.5
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Rigid Straight Adapter, Series: 9325, Connection Type 1: Metric, Gender 1: Female, Connection Size 1: 22 mm, Thread Size 1: M22 x 1.5, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 28.5 mm, Dimension Standards: ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974, Material Construction: Carbon Steel, 44.3 mm Length

Connection Size 1      :      22 mm
Connection Size 2      :      1/2 in
Connection Type      :      Metric~NPT
Connection Type 1      :      Metric
Connection Type 2      :      NPTF
Dimension Standards      :      ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974
Fitting Type      :      Straight Adapter
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      28.5 mm
Length      :      44.3 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9325
Shape      :      Straight
Thread Size 1      :      M22 x 1.5
Thread Size 2      :      1/2-14
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_9002-12-12_CAT.pdf
