Adaptall 9024-16-08
  1. pin-int

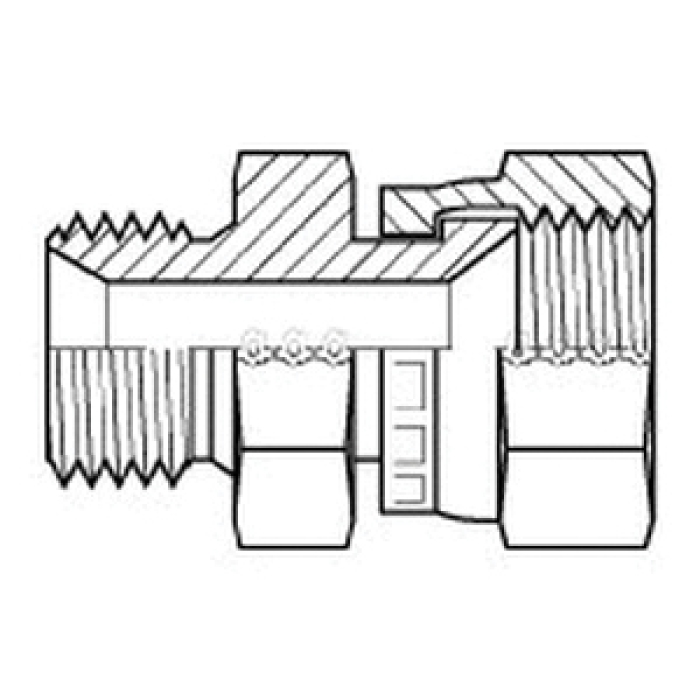

Adaptall 9024 Carbon Steel Straight Adapter, 16 mm Male Metric 60 deg Flare x 1/2 in Female JIC Swivel

Adaptall 9024-16-08

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9024-16-08
  • MPN: 9024-16-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Straight Adapter, Series: 9024, Connection Type 1: Metric 60 deg Flare, Gender 1: Male, Connection Size 1: 16 mm, Thread Size 1: M16 x 1.5, Connection Type 2: JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16 UNF, Hex Size: 17 x 19 mm, Dimension Standards: DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514, Material Construction: Carbon Steel, 39 mm Length

Connection Size 1      :      16 mm
Connection Size 2      :      1/2 in
Connection Type      :      Metric~JIC Swivel
Connection Type 1      :      Metric 60 deg Flare
Connection Type 2      :      JIC Swivel
Dimension Standards      :      DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Female
Hex Size      :      17 x 19 mm
Length      :      39 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9024
Shape      :      Straight
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      3/4-16 UNF
