Adaptall 9011-16-12
  1. pin-int

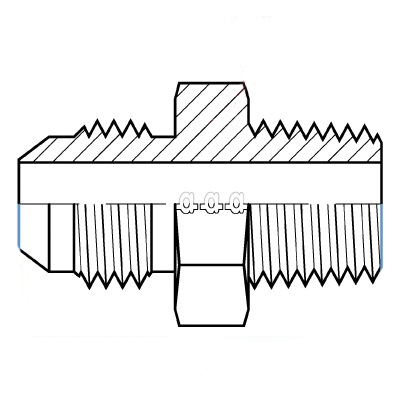

Adaptall 9011 Carbon Steel Straight Adapter, 3/4 in Male BSPT x 1 in Male JIC

Adaptall 9011-16-12

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9011-16-12
  • MPN: 9011-16-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Straight Adapter, Series: 9011, Connection Type 1: BSPT, Gender 1: Male, Connection Size 1: 3/4 in, Thread Size 1: R 3/4-14, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 1 in, Thread Size 2: 1-5/16-12 UN, Hex Size: 35 mm, Dimension Standards: DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514, Material Construction: Carbon Steel, 55.9 mm Length

Connection Size 1      :      3/4 in
Connection Size 2      :      1 in
Connection Type      :      BSPT~JIC
Connection Type 1      :      BSPT
Connection Type 2      :      JIC
Dimension Standards      :      DIN EN 10226-1, ISO 7-1, ISO 8434-2, SAE J514
Fitting Type      :      Straight Adapter
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      35 mm
Length      :      55.9 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9011
Shape      :      Straight
Thread Size 1      :      R 3/4-14
Thread Size 2      :      1-5/16-12 UN
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_5360L-35_CAT.pdf
