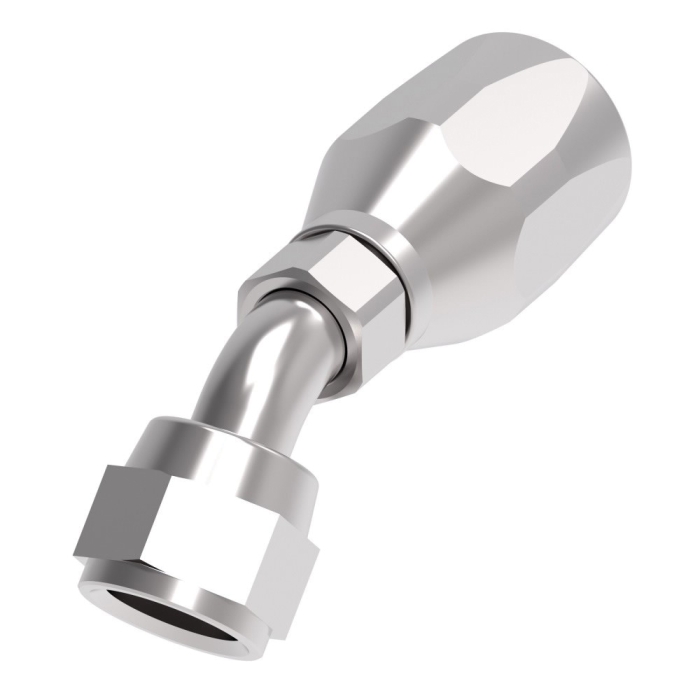

Weatherhead® Field Attachable Reusable Elbow, Series: 247 N, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: SAE 45 deg Flare Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 13/16 x 3/4 in, 7000 psi, Cut-Off Factor: 1.33 in, Material Construction: Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: H059, H069, H166, H169, H229, H366, and H569 Hoses, Dimensions: 3.05 in L x 0.81 in W x 1.62 in H, Dimension Standards: SAE 100R5
| Connection Size 1 |
: |
5/16 in |
| Connection Size 2 |
: |
3/8 in |
| Connection Type |
: |
Hose~SAE Female Swivel |
| Connection Type 1 |
: |
Hose |
| Connection Type 2 |
: |
SAE 45 deg Flare Swivel |
| Cut-Off Factor |
: |
1.33 in |
| Dimension Standards |
: |
SAE 100R5 |
| Dimensions |
: |
3.05 in L x 0.81 in W x 1.62 in H |
| Finish |
: |
Zinc Clear Trivalent Chromate |
| Fitting Type |
: |
45 deg Elbow |
| For Use With |
: |
H059, H069, H166, H169, H229, H366, and H569 Hoses |
| Gender 2 |
: |
Female |
| Hex Size |
: |
13/16 x 3/4 in |
| Hose Dash Size |
: |
05 |
| Material |
: |
Steel |
| Material Construction |
: |
Carbon Steel |
| Nominal Size |
: |
3/8 in |
| Pressure Rating |
: |
7000 psi |
| Series |
: |
247 N |
| Shape |
: |
45 deg Elbow |
| Thread Size 2 |
: |
5/8-18 |
- Very popular in heavy-duty truck markets
- Good selection of hose ends
- Compatible with a wide variety of hose-type allowing for a diverse number of applications
- Non-mandrel assembly
Applications: For a variety of applications including truck, industrial and small engine
AISI/SAE 12L14 Specified
-
