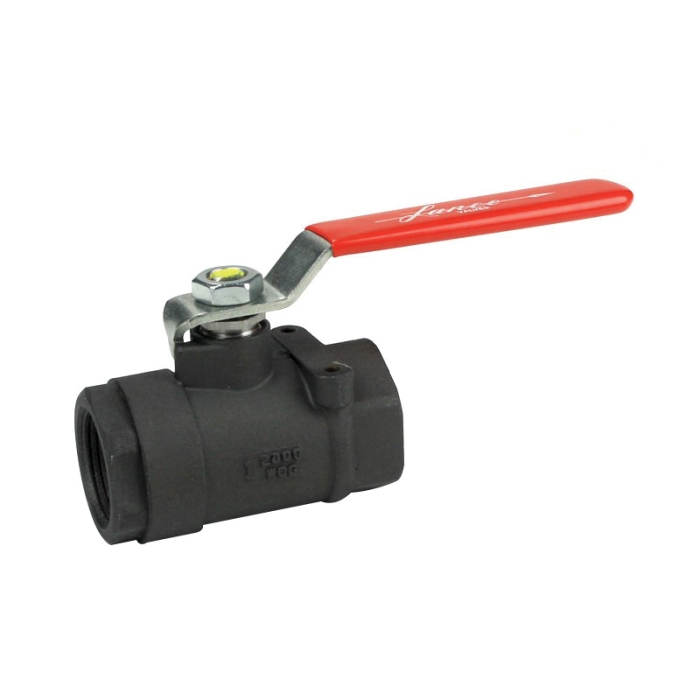

Lance Valves 2-Piece Ball Valve, Series: 23, Nominal Size: 1/2 in, Connection Type: Screw End, Actuator Type: Integral Self-Locking Handle, Material Construction: Carbon Steel, 1214 Carbon Steel Ball, 316 Stainless Steel Stem, Glass Filled PTFE Seat, Stem Packing and Stem Bearing Trim, 2-1/4 in Length, 2000 psi
Actuator Type |
: |
Integral Self-Locking Handle |
Connection Type |
: |
Screw End |
Length |
: |
2-1/4 in |
Material |
: |
Steel |
Material Construction |
: |
Carbon Steel |
Nominal Size |
: |
1/2 in |
Pressure Rating |
: |
2000 psi |
Product Type |
: |
Ball Valve |
Series |
: |
23 |
Trim Material |
: |
1214 Carbon Steel Ball, 316 Stainless Steel Stem, Glass Filled PTFE Seat, Stem Packing and Stem Bearing |
Lance 23 Series 2-piece 2000 psi carbon steel ball valves are available in sizes ranging from 1/4 to 2 in. You can customize the valve to fit your needs by configuring the handle and stem, internal construction and other options.
- Blowout-proof stem design
- Adjustable packing gland
- Drilled and tapped-mounting holes standard
- Chrome-plated steel handle, 316 stainless steel gland nut/chrome-plated steel nut, vinyl handle grip, 1214 carbon steel end connector, glass filled PTFE stem packing, stem bearing
- Tapped with 10-24 UNC threads
- Made in USA
API 598/608 Certified|ASME B16.34
-
