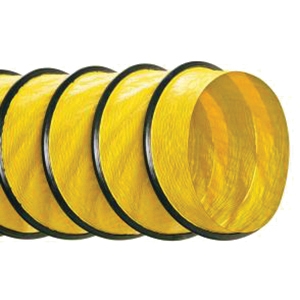

Hi-Tech Duravent 1PV-EP-HM Black/Yellow 1-Ply Polyester Vinyl Laminate Cooling Blower Duct, 1 ft L, 10 psi

Hi-Tech Duravent 1PV-EP-HM

  • Manufacturers: Flexible Technologies
  • Brand Name: Hi-Tech Duravent
  • ARGPN: 1PF-EP-HM1400
  • MPN: 1PV-EP-HM
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Hi-Tech Duravent Cooling Blower Duct, Nominal Size: 14 in, 14.46 in OD, 14 in ID, 0.012 in Thick Wall, 1 ft Length, 10 psi, Material Construction: 1-Ply Polyester Vinyl Laminate, Construction: 1-Ply Polyester Vinyl Laminate Expanded Pitch with Enclosed Wire Helix and a Vinyl Wearstrip, Black/Yellow, 7-1/4 in Bend Radius, Resistance Properties: Drag, Moisture, Oil, Ozone, UV, -20 deg F Low, 180 deg F High

Bend Radius      :      7-1/4 in
Color      :      Black/Yellow
Construction      :      1-Ply Polyester Vinyl Laminate Expanded Pitch with Enclosed Wire Helix and a Vinyl Wearstrip
Inside Diameter      :      14 in
Length      :      25 ft
Material      :      Polyester
Material Construction      :      1-Ply Polyester Vinyl Laminate
Nominal Size      :      14 in
Outside Diameter      :      14.46 in
Pressure Rating      :      10 psi
Product Type      :      Blower Duct
Resistance Properties      :      Drag, Moisture, Oil, Ozone, UV
Temperature High      :      180 deg F
Temperature Low      :      -20 deg F
Wall Thickness      :      0.012 in
  • Lightweight
  • Cost effective
  • Highly compressible for positive pressure movement for air, dust and fumes at lower temperature ranges
  • Flame-retardant to UL94V-0 rating

Applications: Dehumidification, enclosed space fume removal, enclosed space ventilation, portable ac, pre-conditioned air, ventilation

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Hi-Tech_Duravent_1PVEPHM_CAT.pdf
