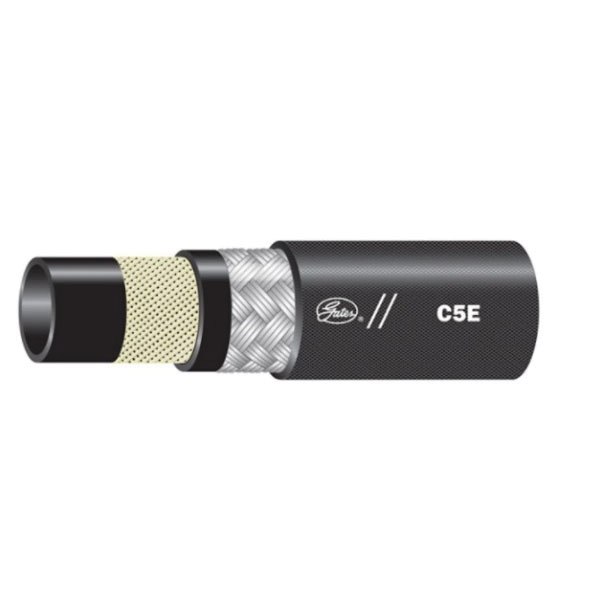

Gates® High-Temp Flexline Hydraulic Hose, Series: C5E, Nominal Size: 1-1/8 in, 1.49 in OD, 1-1/8 in ID, 300 psi, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 1-Braid of High-Tensile Steel Wire Over 1-Braid of Polyester, Black, 4-1/2 in Bend Radius, Resistance Properties: Heat, Oil, -40 deg F Low, 300 deg F High
| Bend Radius |
: |
4-1/2 in |
| Color |
: |
Black |
| Construction |
: |
1-Braid of High-Tensile Steel Wire Over 1-Braid of Polyester |
| Cover Material |
: |
Synthetic Rubber |
| Inside Diameter |
: |
1-1/8 in |
| Material |
: |
Synthetic Rubber |
| Material Construction |
: |
Synthetic Rubber |
| Nominal Size |
: |
1-1/8 in |
| Outside Diameter |
: |
1.49 in |
| Pressure Rating |
: |
300 psi |
| Product Type |
: |
Hydraulic Hose |
| Resistance Properties |
: |
Heat, Oil |
| Series |
: |
C5E |
| Temperature High |
: |
300 deg F |
| Temperature Low |
: |
-40 deg F |
- Black, oil and heat-resistant, synthetic rubber (nitrile Type C) tube
- Black, oil and heat-resistant, textile braid impregnated with synthetic rubber
Applications: For air brake hose, power steering, engine and transmission coolant lines and hot lube oil lines
DOT FMVSS 106 Type A1 Approved | SAE J1402 A1 Certified
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_36580214_CAT.pdf
