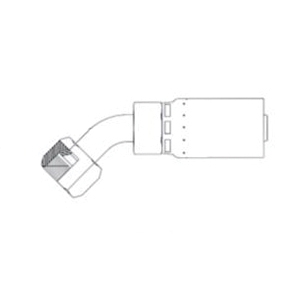

CSI T Series Trivalent Zinc-Plated Female SAE 45 deg/37 deg JIC Swivel Crimp Hose 45 deg Elbow, 1/2 in x 5/8 in

CSI T25-8X10

  • Manufacturers: Couplamatic Systems Inc
  • Brand Name: CSI
  • ARGPN: T25-8X10
  • MPN: T25-8X10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

CSI Crimp Hose 45 deg Elbow, Series: T, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 7/8-14, Hex Size: 1 in, Finish: Trivalent Zinc-Plated, For Use With: 100R14 PTFE Hose (TR14), 100R7 Reduced OD Hose (1/4 - 3/8 in RD7, RD7NC, RD7TL and RD7TLNC) and Standard 100R7 (1/2 - 1 in H7, H7NC, H7TL and H7TLNC) Hoses, Packaging Quantity: 10 PK

Connection Size 1      :      1/2 in
Connection Size 2      :      5/8 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
Finish      :      Trivalent Zinc-Plated
Fitting Type      :      45 deg Elbow
For Use With      :      100R14 PTFE Hose (TR14), 100R7 Reduced OD Hose (1/4 - 3/8 in RD7, RD7NC, RD7TL and RD7TLNC) and Standard 100R7 (1/2 - 1 in H7, H7NC, H7TL and H7TLNC) Hoses
Gender 2      :      Female
Hex Size      :      1 in
Hose Dash Size      :      08
Nominal Size      :      5/8 in
Packaging Quantity      :      10 PK
Series      :      T
Shape      :      45 deg Elbow
Thread Size 2      :      7/8-14

Hydraulic hose ends for 100R14 PTFE hose (TR14), 100R7 reduced OD hose (1/4 - 3/8 in RD7, RD7NC, RD7TL and RD7TLNC) and standard 100R7 (1/2 - 1 in H7, H7NC, H7TL and H7TLNC). The T Series couplings are compatible with virtually all crimp machines and can be crimped with a standard straight crimp or bubble crimp.

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CSI_R5208X8_CAT.pdf
